TAA752A5501-080
ActiveTE Connectivity AMP Connectors

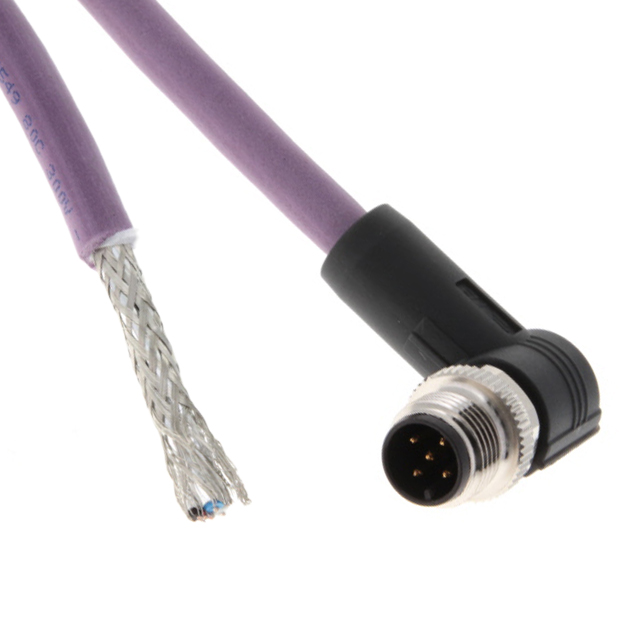

CBL 5POS RCPT RA TO WIRE 26.2'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsM8/M12 Cable Aassemblies Catalog
TAA752A5501-080
ActiveTE Connectivity AMP Connectors
CBL 5POS RCPT RA TO WIRE 26.2'
Deep-Dive with AI
DocumentsM8/M12 Cable Aassemblies Catalog
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TAA752A5501-080 | TAA75 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins, Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 5 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle, Plug, Right Angle, Plug, Receptacle |
| 2nd Connector Gender | - | Female Sockets |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | - | 5 |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Shell Size - Insert | - | M12 |
| 2nd Connector Type | Wire Leads | Wire Leads, Plug |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Violet | Violet, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof, NEMA 1, 3, 4, 6, 6P, IP67/IP68 - Dust Tight, Waterproof, IP68, IP69K |
| Length | 26.2 ' | 19.69 - 26.2 ' |
| Length | 8 m | 6 - 8 m |
| Length | - | 1 - 500 m |
| Length | - | 1.64 - 13.12 ft |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments, Cat5e, PoE+ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 72.39 | |
| 10 | $ 61.53 | |||
| 25 | $ 57.68 | |||
| 50 | $ 54.93 | |||
| 100 | $ 52.31 | |||
TAA75 Series
CBL 5POS RCPT RA TO WIRE 26.2'
| Part | Usage | 1st Connector Mounting Type | Cable Type | Shielding | 1st Connector Type | Color | 1st Connector Orientation | 1st Connector Gender | Length | Length | Assembly Configuration | Ingress Protection | 1st Connector Number of Positions | Cable Material | 2nd Connector Type | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Mounting Type | 2nd Connector Gender | 2nd Connector Shell Size - Insert | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors TAA752A5501-080 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Violet | A | Male Pins | 26.2 ' | 8 m | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | |||||||
TE Connectivity AMP Connectors TAA75AA5501-080 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Violet | A | Male Pins | 26.2 ' | 8 m | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | ||
TE Connectivity AMP Connectors TAA754A1611-002 | Free Hanging (In-Line) | Round | Shielded | Plug, Right Angle | Gray | A | Female Sockets | Standard | 5 | Polyvinyl Chloride (PVC) | Wire Leads | All | M12 | 1 m | 3.28 ft | |||||||||
TE Connectivity AMP Connectors TAA75AA1611-040 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Gray | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | 4 m | 13.12 ft | ||
TE Connectivity AMP Connectors TAA753A5501-001 | Cat5e, Industrial Environments, PoE+ | Free Hanging (In-Line) | Round | Shielded | Plug | Violet | A | Female Sockets | Standard | IP67/IP68 - Dust Tight, Waterproof, NEMA 1, 3, 4, 6, 6P | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | 500 mm | 1.64 ft | |||||||
TE Connectivity AMP Connectors TAA755A5501-002 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Violet | A | Male Pins | Standard | IP68, IP69K | 5 | Polyurethane (PUR) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors TAA751A5501-060 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Violet | A | Male Pins | 19.69 ft | 6 m | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | |||||||
TE Connectivity AMP Connectors TAA751A1611-001 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Gray | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Wire Leads | All | M12 | 500 mm | 1.64 ft | |||||||
TE Connectivity AMP Connectors TAA751A5501-001 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Violet | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | 500 mm | 1.64 ft | |||||||
TE Connectivity AMP Connectors TAA753A5501-002 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Plug | Violet | A | Female Sockets | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | 1 m | 3.28 ft | |||||||
TE Connectivity AMP Connectors TAA751A1611-040 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Gray | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Wire Leads | All | M12 | 4 m | 13.12 ft | |||||||
TE Connectivity AMP Connectors TAA755A5501-001 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Violet | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors TAA755A1611-002 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Gray | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | 1 m | 3.28 ft | ||
TE Connectivity AMP Connectors TAA755A1611-001 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Gray | A | Male Pins | Standard | IP68, IP69K | 5 | Polyvinyl Chloride (PVC) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | 500 mm | 1.64 ft | ||
TE Connectivity AMP Connectors TAA752A1611-020 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Gray | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Wire Leads | All | M12 | 2 m | 6.56 ft | |||||||
TE Connectivity AMP Connectors TAA751A5501-002 | Free Hanging (In-Line) | Round | Shielded | Receptacle | Violet | A | Male Pins | Standard | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | 1 m | 3.28 ft | |||||||||
TE Connectivity AMP Connectors TAA754A5501-002 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Plug, Right Angle | Violet | A | Female Sockets | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | 1 m | 3.28 ft | |||||||
TE Connectivity AMP Connectors TAA75AA1611-060 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Gray | A | Male Pins | 19.69 ft | 6 m | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | ||
TE Connectivity AMP Connectors TAA751A5501-020 | Cat5e, Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Violet | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Wire Leads | All | M12 | 2 m | 6.56 ft | |||||||
TE Connectivity AMP Connectors TAA751A1611-002 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle | Gray | A | Male Pins | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyvinyl Chloride (PVC) | Wire Leads | All | M12 | 1 m | 3.28 ft | |||||||
TE Connectivity AMP Connectors TAA75AA5501-060 | Industrial Environments | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Violet | A | Male Pins | 19.69 ft | 6 m | Standard | IP67 - Dust Tight, Waterproof | 5 | Polyurethane (PUR) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | ||
TE Connectivity AMP Connectors TAA75AA5501-001 | Cat5e, Industrial Environments, PoE+ | Free Hanging (In-Line) | Round | Shielded | Receptacle, Right Angle | Violet | A | Male Pins | Standard | IP67/IP68 - Dust Tight, Waterproof, NEMA 1, 3, 4, 6, 6P | 5 | Polyurethane (PUR) | Plug | All | M12 | 5 | All | Free Hanging (In-Line) | Female Sockets | M12 | 500 mm | 1.64 ft |
Description
General part information
TAA75 Series
Circular Cable Assembly Shielded 26.2' (8.00m)
