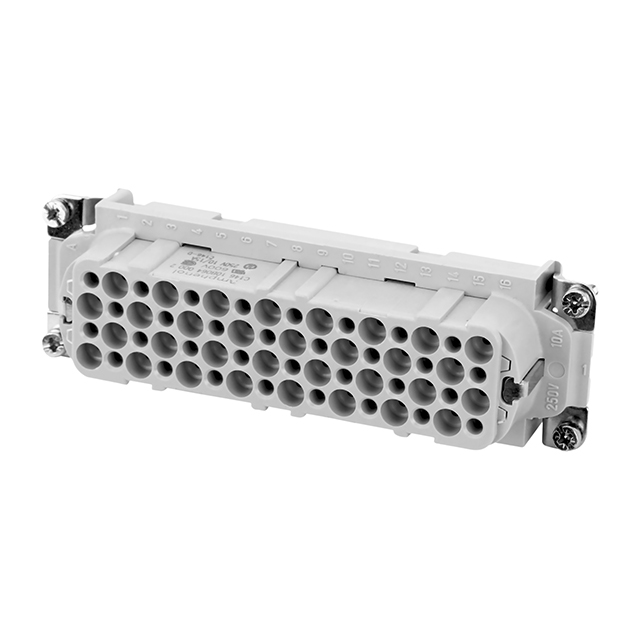

C14610B0640002

Active

Amphenol Tuchel Industrial

INSERT FEMALE 64POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 64POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0640002

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Female
Material Flammability Rating	UL94 V-0
Number of Positions	64+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Termination Style	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Gender	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Contact Type	Termination Style	Voltage Rating	Number of Positions	Material Flammability Rating
Amphenol Tuchel Industrial C14610B0645002	15 A	Female	Gray	Insert without Contacts	125 °C	-40 °C	E24	C146 D DD heavy\|mate® M	Crimp	600 V	64+Ground	UL94 V-0
Amphenol Tuchel Industrial C14610B0640002	15 A	Female	Gray	Insert without Contacts	125 °C	-40 °C	E24	C 16-3 C146 D heavy\|mate® M	Crimp	600 V	64+Ground	UL94 V-0
Amphenol Tuchel Industrial C14610B0640602	15 A	Female	Gray	Insert without Contacts	125 °C	-40 °C	E24	C 16-3 C146 D heavy\|mate® M	Crimp	600 V	64+Ground	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 64+Ground Position Crimp
