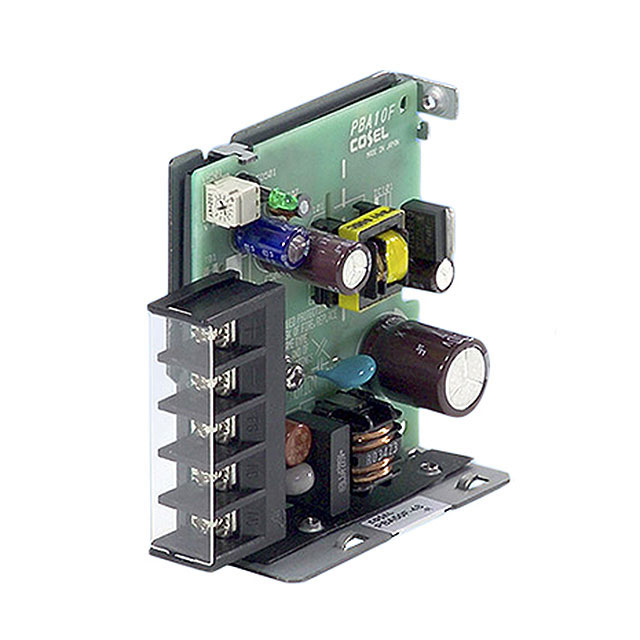

PBA10F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBA10F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBA10F-12

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	900 mA
Efficiency	76 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	10 W
Type	Open Frame
Voltage - Output 1	12 V

PBA10 Series

Part	Mounting Type	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Approval Agency	Voltage - Isolation	Number of Outputs	Features	Power (Watts)
Cosel USA, Inc. PBA10F-12-CEN	Chassis Mount	12 V	Enclosed	-10 °C	71 °C	76 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	900 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-24-CN	Chassis Mount	24 V	Enclosed	-10 °C	71 °C	77 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	500 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-12-GTN	Chassis Mount	12 V	Enclosed	-10 °C	71 °C	76 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	900 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-24-TN	Chassis Mount	24 V	Enclosed	-10 °C	71 °C	77 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	500 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-24-JN	Chassis Mount	24 V	Enclosed	-10 °C	71 °C	77 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	500 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-12	Chassis Mount	12 V	Open Frame			76 %	ITE (Commercial)							900 mA	CE cURus TUV		1	DC Input Capable Universal Input	10 W
Cosel USA, Inc. PBA10F-12-CGN	Chassis Mount	12 V	Enclosed	-10 °C	71 °C	76 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	900 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-5-G	Chassis Mount	5 V	Open Frame	-10 °C	71 °C	74 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	2 A	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-24-EN	Chassis Mount	24 V	Enclosed	-10 °C	71 °C	77 %	ITE (Commercial)	31 mm	1.22 "	2.68 in	68.1 mm	3.07 in	78 mm	500 mA	CE cURus TUV	3000 V	1
Cosel USA, Inc. PBA10F-5-N	Chassis Mount	5 V	Enclosed			74 %	ITE (Commercial)							2 A	CE cURus TUV		1	DC Input Capable Universal Input	10 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 40.97
		5	$ 39.76
		10	$ 38.56
		25	$ 37.35
		50	$ 36.15
		100	$ 34.94
		250	$ 33.74

Description

General part information

PBA10 Series

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
