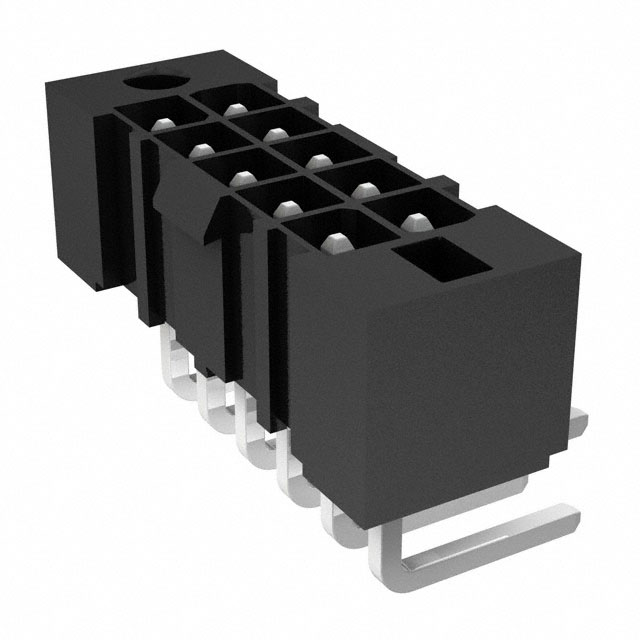

IPBT-105-H1-T-D-RA-GP

Active

Samtec Inc.

CONN HEADER R/A 10POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPBS Series Other Related Documents 03 +2

IPBT-105-H1-T-D-RA-GP

Active

Samtec Inc.

CONN HEADER R/A 10POS 4.2MM

Deep-Dive with AI

DocumentsDatasheet IPBS Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPBT-105-H1-T-D-RA-GP

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	6.6 mm
Contact Length - Mating [custom]	0.26 in
Contact Length - Post	3.73 mm
Contact Length - Post	0.147 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Mating Flange
Insulation Color	Black
Insulation Height [z]	10.77 mm
Insulation Height [z]	0.424 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	400 VAC, 565 VDC

IPBT-105 Series

Part	Number of Positions	Connector Type	Contact Material	Contact Type	Insulation Color	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Shape	Features	Mounting Type	Termination	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Material Flammability Rating	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Shrouding	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
Samtec Inc. IPBT-105-H1-T-D-RA-GP	10	Header	Copper Alloy	Male Pin	Black	3.73 mm	0.147 in	Liquid Crystal Polymer (LCP)	Square	Mating Flange	Through Hole Right Angle	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	2	UL94 V-0	Board to Board Cable	4.2 mm	0.165 in	All	10.77 mm	0.424 in	Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp
Samtec Inc. IPBT-105-H1-T-D-K	10	Header	Copper Alloy	Male Pin	Black	3.3 mm	0.13 in	Liquid Crystal Polymer (LCP)	Square		Through Hole	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	2	UL94 V-0	Board to Board Cable	4.2 mm	0.165 in	All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.38 in	9.65 mm
Samtec Inc. IPBT-105-H1-T-S-GP		Header	Copper Alloy	Male Pin	Black	3.3 mm	0.13 in	Liquid Crystal Polymer (LCP)	Square	Mating Flange	Through Hole	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	1	UL94 V-0	Board to Board Cable			All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.38 in	9.65 mm
Samtec Inc. IPBT-105-H1-T-S-RA-GP		Header	Copper Alloy	Male Pin	Black	3.73 mm	0.147 in	Liquid Crystal Polymer (LCP)	Square	Mating Flange	Through Hole Right Angle	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	1	UL94 V-0	Board to Board Cable			All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.259 in	6.58 mm
Samtec Inc. IPBT-105-H3-T-D-GP	10	Header	Copper Alloy	Male Pin	Black	3.3 mm	0.13 in	Liquid Crystal Polymer (LCP)	Square	Mating Flange	Through Hole	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	2	UL94 V-0	Board to Board Cable	4.2 mm	0.165 in	All	12.04 mm	0.474 in	Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp			14.71 mm	0.579 in
Samtec Inc. IPBT-105-H2-T-S-GP		Header	Copper Alloy	Male Pin	Black			Liquid Crystal Polymer (LCP)	Square	Mating Flange	Surface Mount	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	1	UL94 V-0	Board to Board Cable			All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.38 in	9.65 mm
Samtec Inc. IPBT-105-H1-TM-S-K		Header	Copper Alloy	Male Pin	Black	3.3 mm	0.13 in	Liquid Crystal Polymer (LCP)	Square		Through Hole	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	1	UL94 V-0	Board to Board Cable			All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.38 in	9.65 mm
Samtec Inc. IPBT-105-H5-T-D-GP	10	Header	Copper Alloy	Male Pin	Black	3.3 mm	0.13 in	Liquid Crystal Polymer (LCP)	Square	Mating Flange	Through Hole	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	2	UL94 V-0	Board to Board Cable	4.2 mm	0.165 in	All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.592 in	15.04 mm			17.7 mm	0.697 in
Samtec Inc. IPBT-105-H1-T-D	10	Header	Copper Alloy	Male Pin	Black	3.3 mm	0.13 in	Liquid Crystal Polymer (LCP)	Square		Through Hole	Solder	6.6 mm	0.26 in	Tin	4.2 mm	0.165 in	2	UL94 V-0	Board to Board Cable	4.2 mm	0.165 in	All			Shrouded - 4 Wall	400 VAC 565 VDC	105 ░C	-55 °C	Locking Ramp	0.38 in	9.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.53
		50	$ 3.69
		100	$ 3.13
		500	$ 2.79
		1000	$ 2.60
