HPM-08-05-T-S

Active

Samtec Inc.

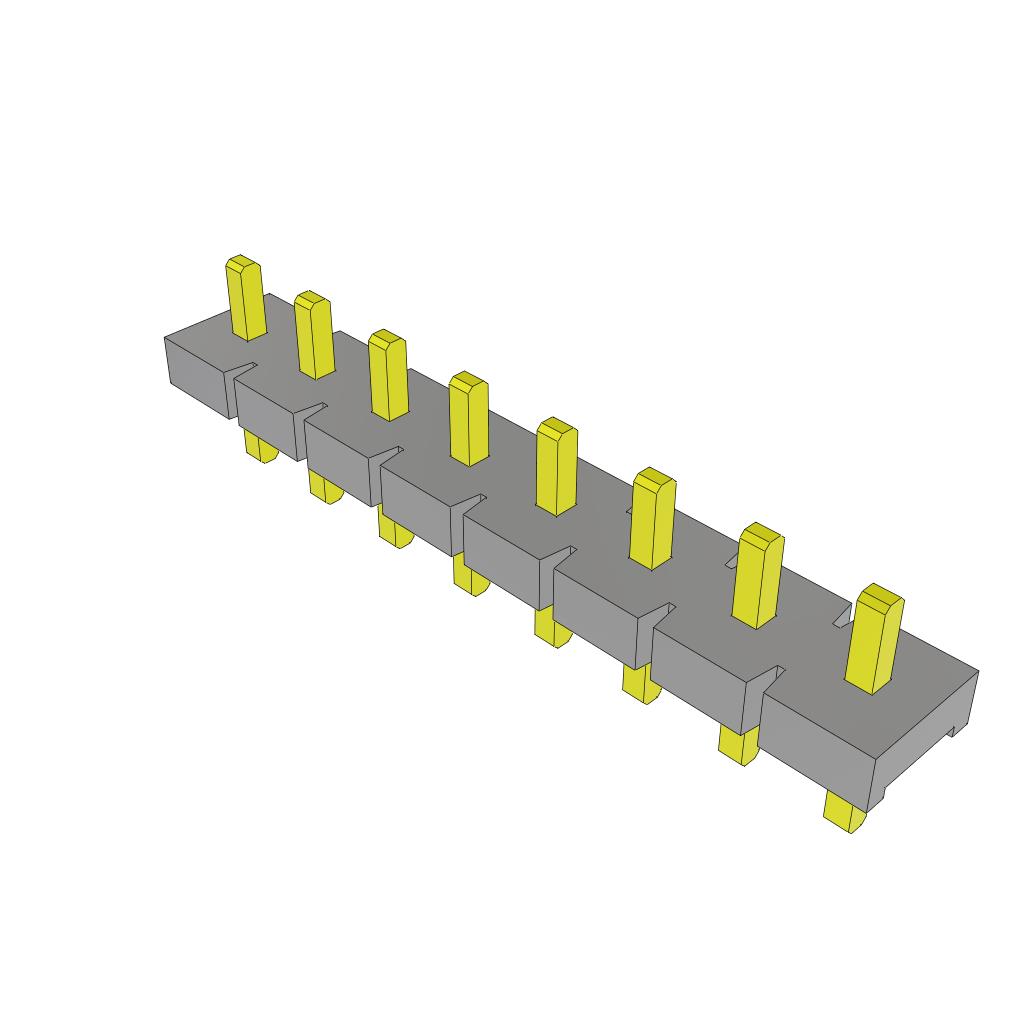

.200" POWER TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPM-08-05-T-S

Active

Samtec Inc.

.200" POWER TERMINAL STRIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPM-08-05-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	0.18 in
Contact Length - Post	4.57 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.43 in
Overall Contact Length	10.92 mm
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	1200 VDC, 850 VAC

HPM-06 Series

Headers & Wire Housings .200" Power Terminal Strip

Part	Contact Material	Number of Positions	Contact Shape	Shrouding	Number of Rows	Number of Positions Loaded	Contact Type	Termination	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Fastening Type	Mounting Type	Contact Finish - Post	Connector Type	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Features	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. HPM-08-05-T-S	Copper Alloy	8	Square	Unshrouded	1	All	Male Pin	Solder	0.18 in	4.57 mm	105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Black	Push-Pull	Through Hole	Tin	Header	0.43 in	10.92 mm	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)	0.15 in	3.81 mm
Samtec Inc. HPM-06-04-T-S	Copper Alloy	6	Square	Unshrouded	1	All	Male Pin	Solder		4.09 mm	105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Black	Push-Pull	Through Hole	Tin	Header	1.091 "	27.71 mm	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)	0.83 in	21.08 mm	0.161 in
Samtec Inc. HPM-08-05-TM-S	Copper Alloy	8	Square	Unshrouded	1	All	Male Pin	Solder	0.18 in	4.57 mm	105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Black	Push-Pull	Through Hole	Tin	Header	0.43 in	10.92 mm	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)	0.15 in	3.81 mm
Samtec Inc. HPM-08-02-T-S-VS	Copper Alloy	8	Square	Unshrouded	1	All	Male Pin	Solder			105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Natural	Push-Pull	Surface Mount	Tin	Header			5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)
Samtec Inc. HPM-08-01-T-S-VS-P	Copper Alloy	8	Square	Unshrouded	1	All	Male Pin	Solder			105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Natural	Push-Pull	Surface Mount	Tin	Header			5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)				Pick and Place
Samtec Inc. HPM-11-01-T-S-VS	Copper Alloy	11	Square	Unshrouded	1	All	Male Pin	Solder			105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Natural	Push-Pull	Surface Mount	Tin	Header			5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)
Samtec Inc. HPM-06-01-T-S-VS-P	Copper Alloy	6	Square	Unshrouded	1	All	Male Pin	Solder			105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Natural	Push-Pull	Surface Mount	Tin	Header			5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)				Pick and Place
Samtec Inc. HPM-08-02-TM-S	Copper Alloy	8	Square	Unshrouded	1	All	Male Pin	Solder	0.18 in	4.57 mm	105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Black	Push-Pull	Through Hole	Tin	Header	0.8 in	20.32 mm	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)					13.21 mm	0.52 in
Samtec Inc. HPM-08-04-T-S-RA	Copper Alloy	8	Square	Unshrouded	1	All	Male Pin	Solder	0.156 in	3.96 mm	105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Black	Push-Pull	Through Hole Right Angle	Tin	Header			5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)					13.82 mm	0.544 in
Samtec Inc. HPM-06-01-T-S-VS	Copper Alloy	6	Square	Unshrouded	1	All	Male Pin	Solder			105 ░C	-55 °C	850 VAC 1200 VDC	0.1 in	2.54 mm	UL94 V-0	Natural	Push-Pull	Surface Mount	Tin	Header			5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.99

Description

General part information

HPM-06 Series

Headers & Wire Housings .200" Power Terminal Strip

Documents

Technical documentation and resources
