9314 0601000

Active

Belden Inc.

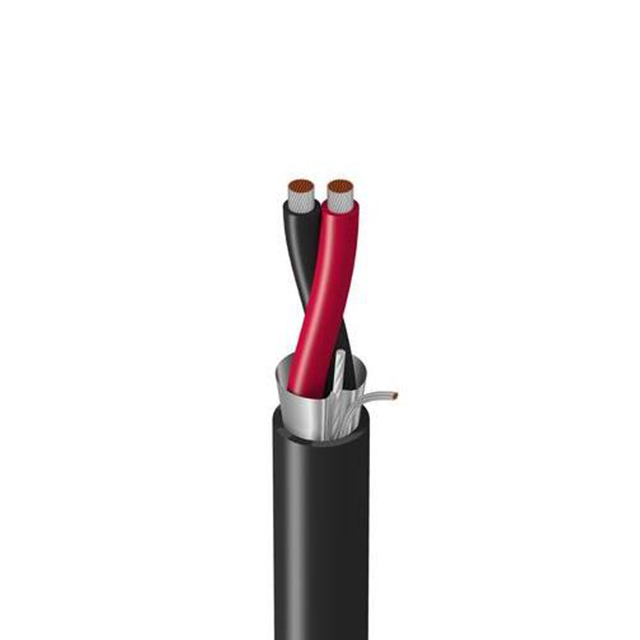

CABLE 2COND 14AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9314 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	42
Conductor Strand [custom]	30
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	8.26 mm
Jacket (Insulation) Diameter [diameter]	0.325 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Length	Length	Voltage	Shield Type	Shield Material	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Usage	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material
Belden Inc. 9314 0601000	1000 ft	304.8 m	300 V	Foil	Aluminum	13.5 AWG	Multi-Conductor	8.26 mm	0.325 in	Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	2	Chrome	Instrumentation	100 %	42	30	1.067 mm	0.042 in	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.77

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Chrome 14 AWG Foil 1000.0' (304.8m)
