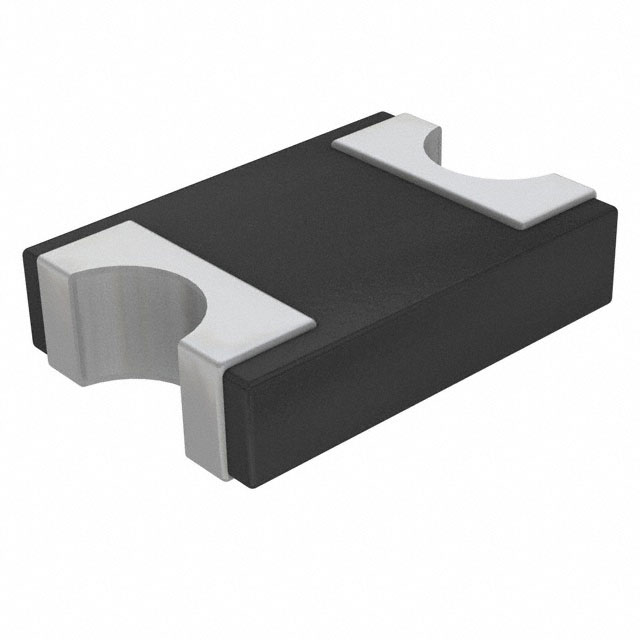

ACDBCT3100-HF

Active

Comchip Technology

DIODE SCHOTTKY 100V 3A 3220

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 100V 3A 3220

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBCT3100-HF

Capacitance @ Vr, F	180 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	500 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-SMD, No Lead
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	3220/DO-214AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If [Max]	850 mV

DIODE SCHOTTKY 100V 3A 3220

Part	Current - Average Rectified (Io)	Speed	Qualification	Grade	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Supplier Device Package	Capacitance @ Vr, F
Comchip Technology ACDBCT3100-HF	3 A	200 mA, 500 ns	AEC-Q101	Automotive	100 V	2-SMD, No Lead	850 mV	150 °C	-55 °C	500 µA	Schottky	Surface Mount	3220/DO-214AB	180 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 3A Surface Mount 3220/DO-214AB
