STTH8003CY

Active

STMicroelectronics

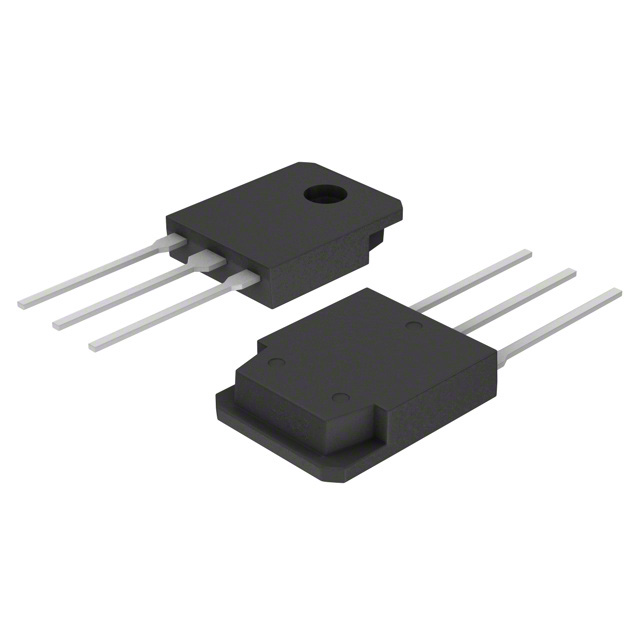

DIODE ARRAY GP 300V 40A MAX247

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE ARRAY GP 300V 40A MAX247

Technical Specifications

Parameters and characteristics for this part

Specification	STTH8003CY

Current - Average Rectified (Io) (per Diode)	40 A
Current - Reverse Leakage @ Vr	80 µA
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-247-3
Qualification	AEC-Q101
Reverse Recovery Time (trr)	60 ns
Speed	200 mA, 500 ns
Supplier Device Package	MAX247™
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

DIODE ARRAY GP 300V 40A MAX247

Part	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Speed	Supplier Device Package	Grade	Operating Temperature - Junction [Max]	Diode Configuration	Qualification	Package / Case	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Mounting Type
STMicroelectronics STTH8003CY	80 µA	1.25 V	60 ns	200 mA, 500 ns	MAX247™	Automotive	175 °C	1 Pair Common Cathode	AEC-Q101	TO-247-3	Standard	300 V	40 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 300 V 40A Through Hole TO-247-3
