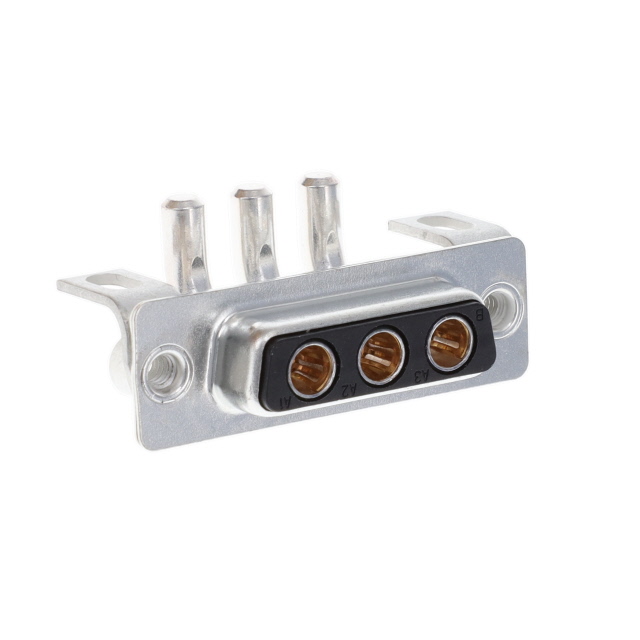

LCC17A3W3SA4N0

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 3POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

LCC17A3W3SA4N0

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 3POS R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCC17A3W3SA4N0

Backset Spacing	0.478 "
Backset Spacing	12.14 mm
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	55 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder

LCC17A3 Series

Part	Contact Type	Contact Material	Connector Type	Material Flammability Rating	Dielectric Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Current Rating (Amps)	Flange Feature	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Number of Positions	Mounting Type	Backset Spacing	Backset Spacing	Wire Gauge
Amphenol ICC (Commercial Products) LCC17A3W3PE4N1	Power	Copper Alloy	Male Pins Plug	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3	Solder	55 A	Housing/Shell (4-40)	Combo D-Sub	Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	1	Gold	3	Through Hole
Amphenol ICC (Commercial Products) LCC17A3W3SA4N0	Power	Copper Alloy	Receptacle Female Sockets	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3	Solder	55 A	Housing/Shell (4-40)	Combo D-Sub	Mounting Brackets	0.76 Ám	30 Áin	1	Gold	3	Through Hole Right Angle	0.478 "	12.14 mm
Amphenol ICC (Commercial Products) LCC17A3W3SF2N0	Power	Copper Alloy	Receptacle Female Sockets	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3	Crimp	55 A	Housing/Shell (Unthreaded)	Combo D-Sub		0.76 Ám	30 Áin	1	Gold	3	Free Hanging (In-Line)			8 AWG
Amphenol ICC (Commercial Products) LCC17A3W3PM2N0	Power	Copper Alloy	Male Pins Plug	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3		55 A	Housing/Shell (Unthreaded)	Combo D-Sub		0.76 Ám	30 Áin	1	Gold	3	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) LCC17A3W3SEAN0	Power	Copper Alloy	Receptacle Female Sockets	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3	Solder	55 A	4-40 Board Side	Combo D-Sub		0.76 Ám	30 Áin	1	Gold	3	Through Hole
Amphenol ICC (Commercial Products) LCC17-A3W3PA-4N0	Power	Copper Alloy	Male Pins Plug	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3	Solder	55 A	Housing/Shell (4-40)	Combo D-Sub	Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	1	Gold	3	Through Hole Right Angle	0.478 "	12.14 mm
Amphenol ICC (Commercial Products) LCC17-A3W3SM-2N0	Power	Copper Alloy	Receptacle Female Sockets	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3		55 A	Housing/Shell (Unthreaded)	Combo D-Sub		0.76 Ám	30 Áin	1	Gold	3	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) LCC17A3W3SA2N0	Power	Copper Alloy	Receptacle Female Sockets	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3	Solder	55 A	Housing/Shell (Unthreaded)	Combo D-Sub		0.76 Ám	30 Áin	1	Gold	3	Through Hole Right Angle	0.478 "	12.14 mm
Amphenol ICC (Commercial Products) LCC17A3W3SM2N1	Power	Copper Alloy	Receptacle Female Sockets	UL94 V-0	Thermoplastic Glass Filled	Black	-40 °C	105 ░C	2 (DA A)	3W3		55 A	Housing/Shell (Unthreaded)	Combo D-Sub		0.76 Ám	30 Áin	1	Gold	3	Free Hanging (In-Line)
