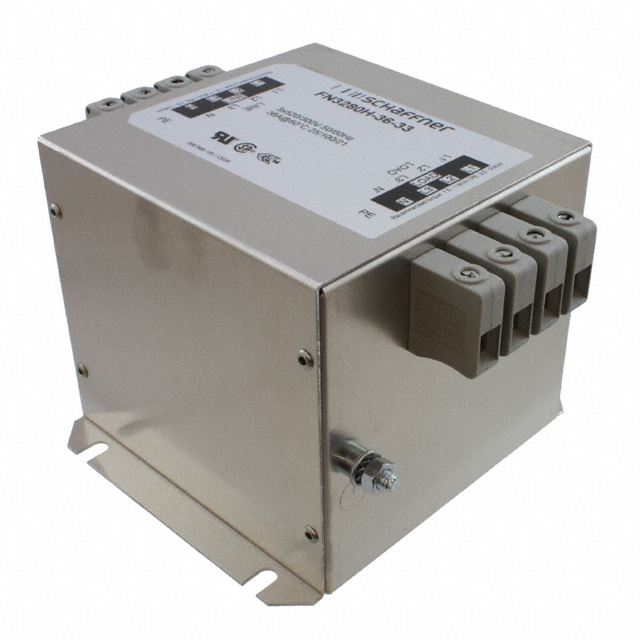

FN3280H-36-33
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 480VAC 36A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN3280H-36-33
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 480VAC 36A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN3280H-36-33 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Two Stage |
| Current | 36 A |
| Filter Type | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 480 V |
| Voltage - Rated AC (Phase to Ground/Neutral) | 300 V |
| Voltage - Rated AC (Phase to Phase) | 520 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 281.57 | |
| 12 | $ 271.86 | |||
| 30 | $ 262.15 | |||
Description
General part information
FN3280H Series
Three Phase (Wye) EMC/EMI Line Filter 36 A 480V DC ~ 60Hz Two Stage Terminal Block
