W16280-3SG-P-318

Active

Conxall/Switchcraft

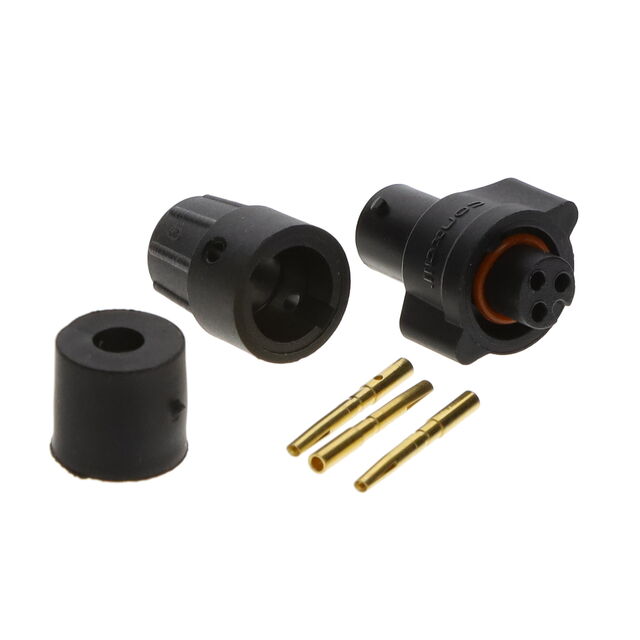

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	W16280-3SG-P-318	W16280 Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant, Backshell	UV Resistant, Backshell, Coupling Nut
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Mounting Type	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Primary Material	Color	Voltage Rating	Fastening Type	Backshell Material, Plating	Current Rating (Amps)	Contact Finish - Mating	Applications	Termination	Features	Shielding	Orientation	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft W16280-3SG-P-318	Free Hanging (In-Line)	Female Sockets, Plug	4.57 mm	0.18 in	0.2 in	5.08 mm	-40 °C	80 C	Thermoplastic	Plastic	Black	600 VAC	Bayonet Lock	Thermoplastic	7.5 A	Gold	Data, Industrial, Instrumentation, Medical	Crimp	Backshell, UV Resistant	Unshielded	Keyed	Copper Alloy
Conxall/Switchcraft W16280-3SG-P-311	Free Hanging (In-Line)	Female Sockets, Plug							Thermoplastic	Plastic	Black		Bayonet Lock	Thermoplastic		Gold		Crimp	Backshell, Coupling Nut, UV Resistant	Unshielded	Keyed	Copper Alloy	2.29 mm	0.09 in, 0.14 in	3.56 mm
