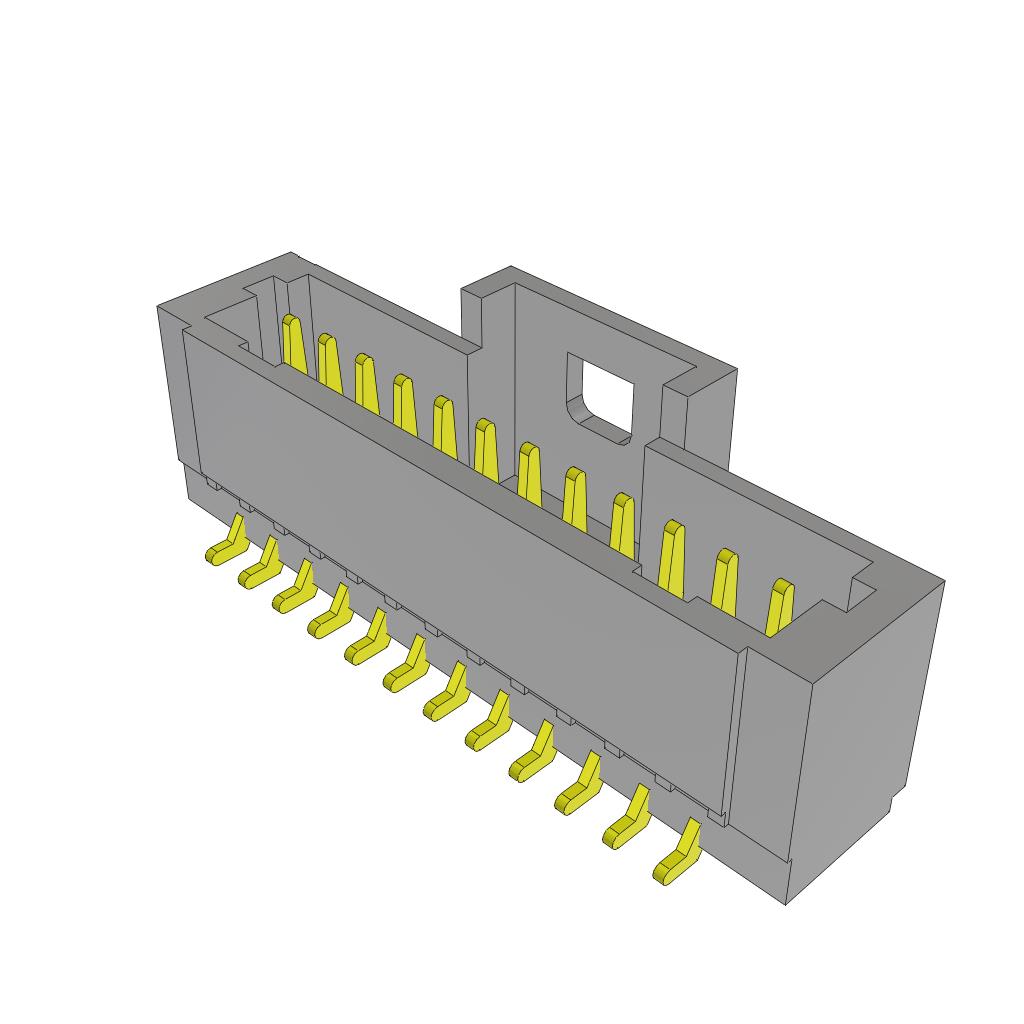

T1M-12-F-SV-L

Active

Samtec Inc.

DISCRETE WIRE TERMINAL STRIP, 1.

Search across all available documentation for this part.

Active

Samtec Inc.

DISCRETE WIRE TERMINAL STRIP, 1.

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-12-F-SV-L

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Shape	Contact Finish - Post	Material Flammability Rating	Features	Voltage Rating	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Shrouding	Number of Rows	Style	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. T1M-12-GF-S-V-K-TR	85 °C	-55 °C	Locking Ramp	Surface Mount	Gold	0.167 in	4.25 mm	Liquid Crystal Polymer (LCP)	Male Pin	3 µin	0.076 µm	12	3 µin	0.076 µm	Solder	Square	Gold	UL94 V-0	Pick and Place	250 VAC 353 VDC	Phosphor Bronze	0.039 in	1 mm	Natural	Header	3.3 A	All	Shrouded - 4 Wall	1	Board to Cable/Wire
Samtec Inc. T1M-12-F-SV-L	85 °C	-55 °C	Locking Ramp	Surface Mount	Gold			Liquid Crystal Polymer (LCP)	Male Pin	3 µin	0.076 µm	12			Solder	Square	Tin	UL94 V-0		250 VAC 353 VDC	Phosphor Bronze	0.039 in	1 mm	Natural	Header	3.3 A	All	Shrouded - 4 Wall	1	Board to Cable/Wire	5.51 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 12 position 0.039" (1.00mm)
