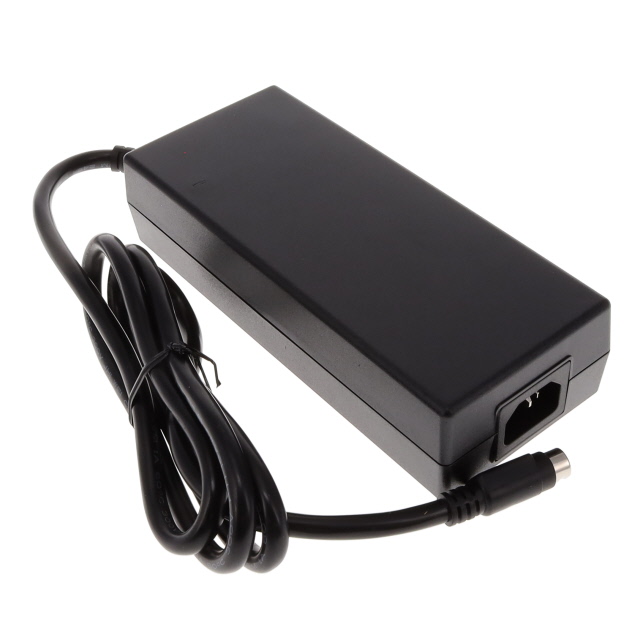

PPL160U-120

Active

Phihong USA

AC/DC DESKTOP ADAPTER 12V 150W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC DESKTOP ADAPTER 12V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	PPL160U-120

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	12.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	150 W
Region Utilized	International
Size / Dimension [x]	175.2 mm
Size / Dimension [x]	6.9 in
Size / Dimension [y]	74 mm
Size / Dimension [y]	2.91 "
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Applications	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Output Connector	Output Connector	Cord Length	Cord Length	Voltage - Output	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Region Utilized	Operating Temperature [Max]	Form	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Cord Length
Phihong USA PPL160U-120	ITE (Commercial)	150 mW	90 VAC	264 VAC	Cord	4 Pin	Power DIN	1.2 m	47.2 in	12 V	IEC 320-C14	74 mm	175.2 mm	6.9 in	2.91 "	1.65 "	42 mm	International	40 °C	Desktop (Class I)	CoC Tier 2 Level VI	12.5 A	150 W	cULus IEC
Phihong USA PPL160U-480	ITE (Commercial)	150 mW	90 VAC	264 VAC	Cord	4 Pin	Power DIN		1.5 m	48 V	IEC 320-C14	74 mm	175.2 mm	6.9 in	2.91 "	1.65 "	42 mm	International	40 °C	Desktop (Class I)	CoC Tier 2 Level VI	3.3 A	158 W	cULus IEC	59 in
Phihong USA PPL160U-240	ITE (Commercial)	150 mW	90 VAC	264 VAC	Cord	4 Pin	Power DIN		1.5 m	24 V	IEC 320-C14	74 mm	175.2 mm	6.9 in	2.91 "	1.65 "	42 mm	International	40 °C	Desktop (Class I)	CoC Tier 2 Level VI	6.6 A	158 W	cULus IEC	59 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
