SMP-FSBA-1716

Active

McGill Microwave Systems

ADAPTER, SMP PLUG TO SMP PLUG, F

SMP-FSBA-1716

Active

McGill Microwave Systems

ADAPTER, SMP PLUG TO SMP PLUG, F

Description Specifications Series Pricing CAD Documents

Description

General part information

SMP-FSBA Series

Adapter Coaxial Connector SMP Plug, Female Socket To SMP Plug, Female Socket 50 Ohms

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-FSBA-1716

Adapter Series	SMP to SMP
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP Plug, Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMP Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	26.5 GHz
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

SMP-FSBA Series

Part	Frequency - Max	Conversion Type	Center Contact Plating	Center Gender	Adapter Series	Convert From (Adapter End)	Mounting Type	Fastening Type	Adapter Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Impedance	Style	Center Contact Material	Mating Cycles	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Body Material	Includes	Includes Total Count
McGill Microwave Systems SMP-FSBA-1316	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
McGill Microwave Systems SMP-FSBA-145	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
McGill Microwave Systems SMP-FSBA-645	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper

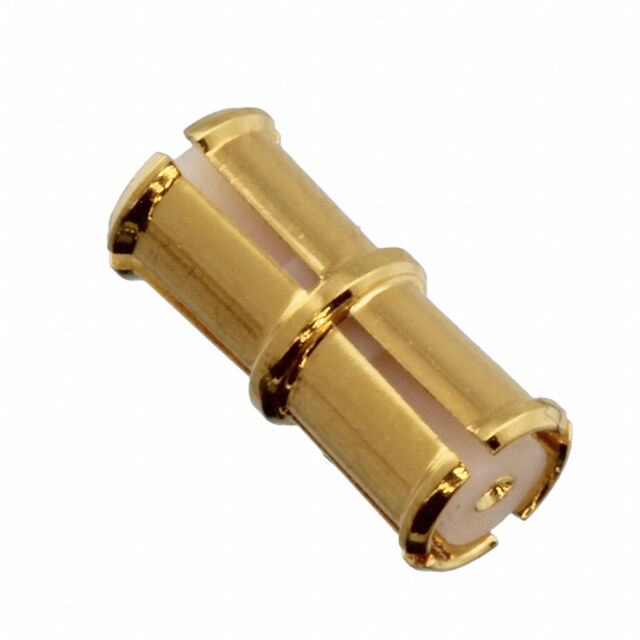

McGill Microwave Systems SMP-FSBA-739	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
McGill Microwave Systems SMP-FSBA-093	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
McGill Microwave Systems SMP-FSBA-1716	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
McGill Microwave Systems SMP-FSBA-594	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper	Connector Spring	2 pcs
McGill Microwave Systems SMP-FSBA-990	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
McGill Microwave Systems SMP-FSBA-090	26.5 GHz	Same Series	Gold	Female	SMP to SMP	Female Socket SMP Plug	Free Hanging (In-Line)	Snap-On	Plug to Plug	Female Socket	SMP Plug	50 Ohm	Straight	Beryllium Copper	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Beryllium Copper
