OHN3020U

Active

TT Electronics/Optek Technology

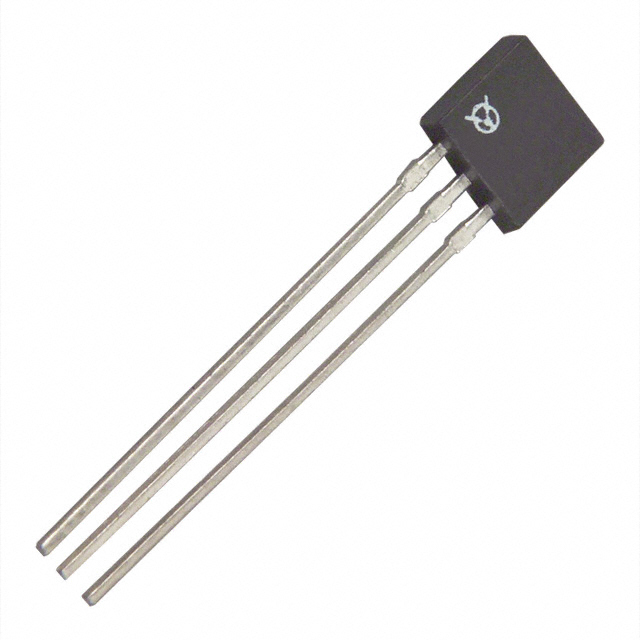

MAGNETIC SWITCH UNIPOLAR TO92-3

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

MAGNETIC SWITCH UNIPOLAR TO92-3

Technical Specifications

Parameters and characteristics for this part

MAGNETIC SWITCH UNIPOLAR TO92-3

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Max) [Max]	Technology	Function	Mounting Type	Sensing Range	Current - Output (Max) [Max]	Output Type	Package / Case	Test Condition	Polarization	Supplier Device Package
TT Electronics/Optek Technology OHN3020U	-20 °C	85 C	24 V	4.5 V	7 mA	Hall Effect	Unipolar Switch	Through Hole	5 mT, 35 mT	25 mA	Open Collector	3-SSIP	25 °C	South Pole	TO-92-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Digital Switch Unipolar Switch Open Collector Hall Effect TO-92-3
