Specification	ATHD04-1-8P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size Options	8 Power
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Position Types	Power
Shell Material	Thermoplastic
Shielding	Unshielded
Type	For Male Pins

ATHD04 Series

Part	Fastening Type	Connector Type	Contact Type	Mounting Type	Number of Positions	Position Types	Contact Size Options	Housing Color	Shielding	Type	Shell Material	Orientation	Ingress Protection IP Rating	Ingress Protection Description	Contact Shape	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Note	Current Rating	Color	Mounting Feature	Voltage Rating	Termination	Cable Opening (Max)	Cable Opening (Min)	Primary Material	Contact Size (Power)
McGill Microwave Systems ATHD04-1-12P	Latch Lock	Receptacle Housing	Crimp	Free Hanging (In-Line)	1	Power	12 Power	Black	Unshielded	For Male Pins	Thermoplastic	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Thermoplastic	125 °C	-55 °C	Contacts Not Included
McGill Microwave Systems ATHD04-1-8P-PM11	Latch Lock	Male Pins Receptacle		Panel Mount	1	Power			Unshielded		Thermoplastic	Keyed	IP68	Dust Tight Waterproof			125 °C	-55 °C		25 A	Black	Flange	500 V	Crimp	0.24 in	0.19 in	Plastic

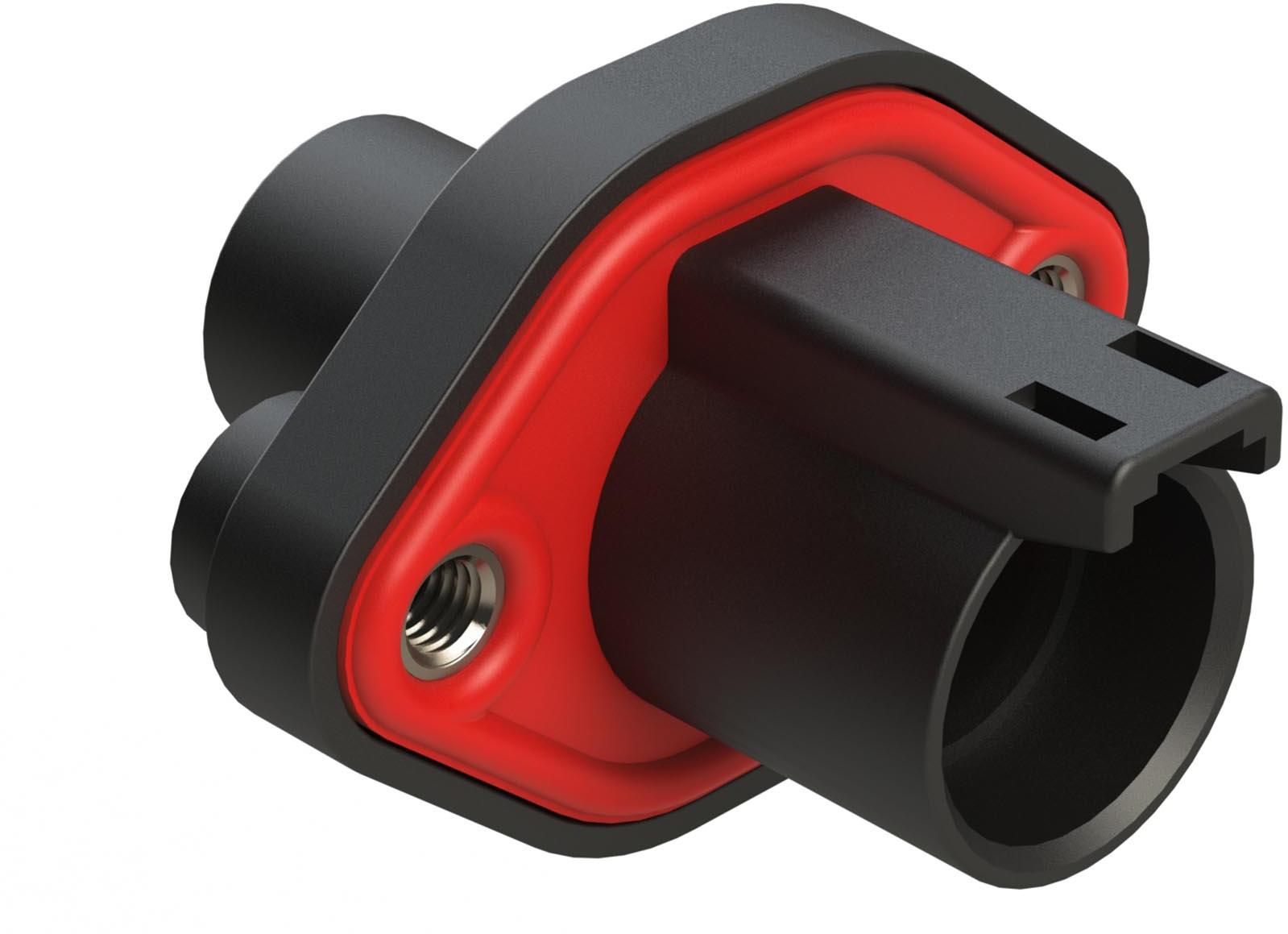

McGill Microwave Systems ATHD04-1-8P-PM05	Latch Lock	Male Pins Receptacle		Panel Mount	1	Power			Unshielded		Thermoplastic	Keyed	IP68	Dust Tight Waterproof			125 °C	-55 °C		25 A	Black	Flange	500 V	Crimp	0.24 in	0.19 in	Plastic
McGill Microwave Systems ATHD04-1-8P	Latch Lock	Receptacle Housing	Crimp	Free Hanging (In-Line)	1	Power	8 Power	Black	Unshielded	For Male Pins	Thermoplastic	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Thermoplastic	125 °C	-55 °C	Contacts Not Included
McGill Microwave Systems ATHD04-1-12P-E003	Latch Lock	Receptacle Housing	Crimp	Free Hanging (In-Line)	1	Power	12 Power	Black	Unshielded	For Male Pins	Thermoplastic	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular	Thermoplastic	125 °C	-55 °C	Contacts Not Included

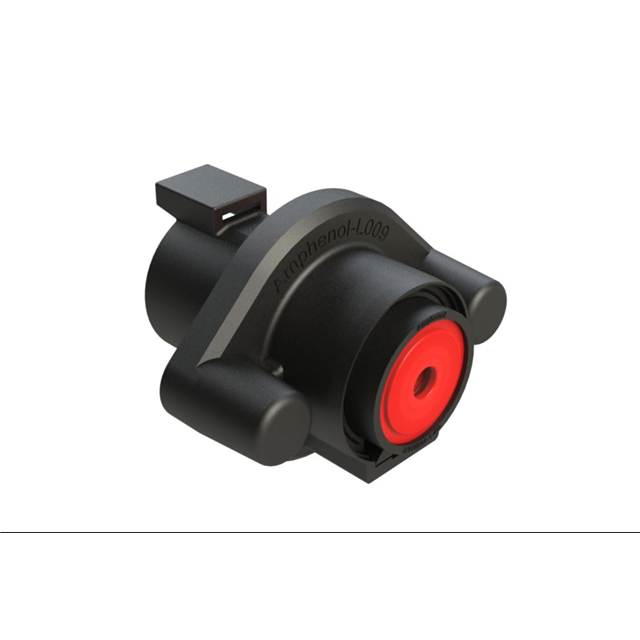

McGill Microwave Systems ATHD04-1-4P-L009	Latch Lock	Receptacle Housing	Crimp	Panel Mount	1	Power	4 Power	Black	Unshielded	For Male Pins	Thermoplastic		IP67 IP69K	Dust Tight Water Resistant Waterproof	Circular		125 °C	-55 °C	Contacts Not Included			Flange						4
