8280-3SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-3SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.59
		10	$ 5.05
		25	$ 4.77
		50	$ 4.66
		100	$ 4.42
		300	$ 4.10

Description

General part information

8280-3SG Series

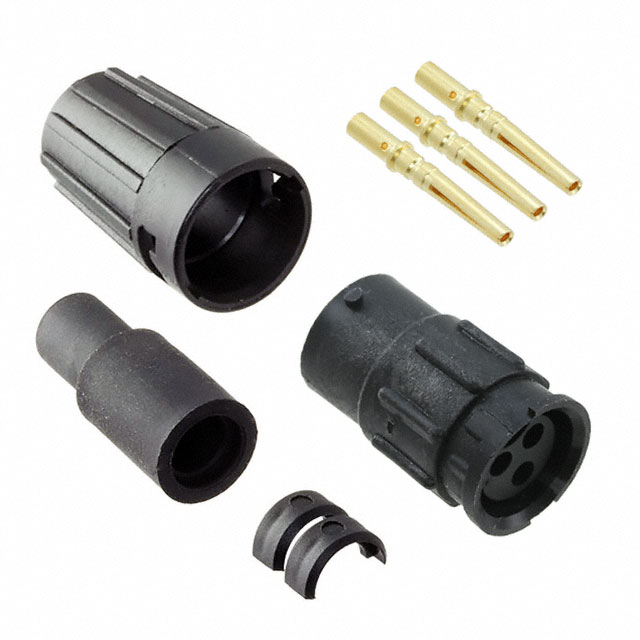

3 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8280-3SG-522	8280-3SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	5.84 mm
Cable Opening [Max] [diameter]	6.35 mm	6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.23 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.21 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.33 - 5.59 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8280-3SG Series

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Orientation	Color	Contact Finish - Mating	Ingress Protection	Termination	Primary Material	Applications	Features	Mounting Type	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Contact Material	Shielding	Voltage Rating	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-3SG-516	Keyed	Black	Gold	Weathertight	Crimp	Plastic	Automotive, Communication Systems, Instrumentation	Backshell	Free Hanging (In-Line)	Bayonet Lock	Receptacle, Female Sockets	-40 °C	115 °C	Varies by Wire Gauge	Nylon, Polyamide (PA)	0.16 in	0.18 in	4.06 mm	4.57 mm	Brass	Unshielded	600 V
Conxall/Switchcraft 8280-3SG-522	Keyed	Black	Gold	Weathertight	Crimp	Plastic	Automotive, Communication Systems, Instrumentation	Backshell	Free Hanging (In-Line)	Bayonet Lock	Receptacle, Female Sockets	-40 °C	115 °C	Varies by Wire Gauge	Nylon, Polyamide (PA)					Brass	Unshielded	600 V	6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 8280-3SG-315	Keyed	Black	Gold	Weathertight	Crimp	Plastic	Automotive, Communication Systems, Instrumentation	Backshell	Free Hanging (In-Line)	Bayonet Lock	Receptacle, Female Sockets	-40 °C	115 °C	Varies by Wire Gauge	Nylon, Polyamide (PA)					Brass	Unshielded	600 V					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 8280-3SG-311	Keyed	Black	Gold	Weathertight	Crimp	Plastic	Automotive, Communication Systems, Instrumentation	Backshell	Free Hanging (In-Line)	Bayonet Lock	Receptacle, Female Sockets	-40 °C	115 °C	Varies by Wire Gauge	Nylon, Polyamide (PA)					Brass	Unshielded	600 V							2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 8280-3SG-3DC	Keyed	Black	Gold	Weathertight	Crimp	Plastic	Automotive, Communication Systems, Instrumentation	Backshell	Free Hanging (In-Line)	Bayonet Lock	Receptacle, Female Sockets	-40 °C	115 °C	Varies by Wire Gauge	Nylon, Polyamide (PA)					Brass	Unshielded	600 V
Conxall/Switchcraft 8280-3SG-321	Keyed	Black	Gold	Weathertight	Crimp	Plastic	Automotive, Communication Systems, Instrumentation	Backshell	Free Hanging (In-Line)	Bayonet Lock	Receptacle, Female Sockets	-40 °C	115 °C	Varies by Wire Gauge	Nylon, Polyamide (PA)					Brass	Unshielded	600 V		0.23 in	0.21 in	5.33 mm						5.84 mm
