AO7404

Obsolete

Alpha & Omega Semiconductor Inc.

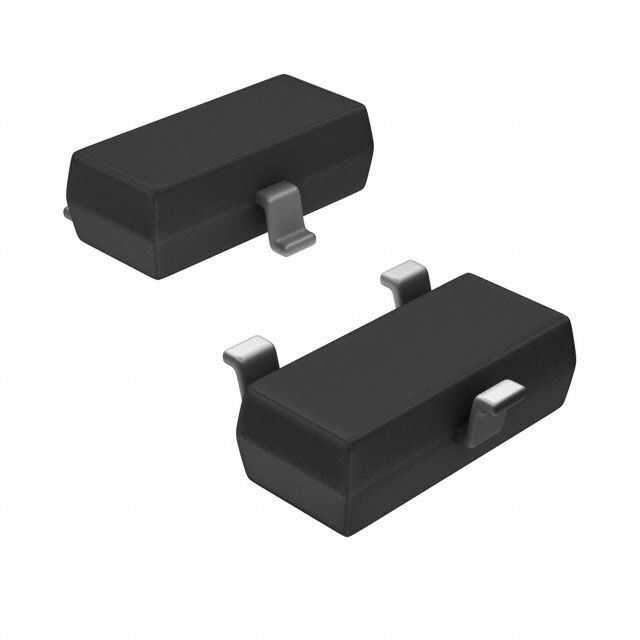

MOSFET N-CH 20V 1A SC70-3

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 20V 1A SC70-3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AO7404	AO740 Series

Current - Continuous Drain (Id) @ 25°C	1 A	1 - 2 A
Drain to Source Voltage (Vdss)	20 V	20 - 30 V
Drive Voltage (Max Rds On, Min Rds On)	4.5 V, 1.8 V	1.8 - 4.5 V
Drive Voltage (Max Rds On, Min Rds On)	-	10 V
Drive Voltage (Max Rds On, Min Rds On)	-	2.5 V
FET Type	N-Channel	P-Channel, N-Channel
Gate Charge (Qg) (Max) @ Vgs	-	4 - 5.06 nC
Gate Charge (Qg) (Max) @ Vgs [Max]	1.57 nC	1.57 nC
Input Capacitance (Ciss) (Max) @ Vds	101 pF	101 - 409 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SC-70, SOT-323	SC-70, SOT-323, 6-TSSOP, SC-88, SOT-363
Power Dissipation (Max) [Max]	350 mW	350 mW
Rds On (Max) @ Id, Vgs	-	62 mOhm
Rds On (Max) @ Id, Vgs [Max]	225 mOhm	225 mOhm
Supplier Device Package	SC-70-3	SC-70-3, SC-70-6
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	8 V	8 - 12 V
Vgs(th) (Max) @ Id	800 mV	1 - 800 V

MOSFET P-CH 30V 1.2A SC70-3

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Power Dissipation (Max) [Max]	Vgs(th) (Max) @ Id	FET Type	Supplier Device Package	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Technology	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]	Rds On (Max) @ Id, Vgs
Alpha & Omega Semiconductor Inc. AO7401L	Surface Mount	-55 °C	150 °C	30 V	10 V	2.5 V	350 mW	1.4 V	P-Channel	SC-70-3	SC-70, SOT-323	5.06 nC	12 V	1.2 A	MOSFET (Metal Oxide)	409 pF
Alpha & Omega Semiconductor Inc. AO7401	Surface Mount	-55 °C	150 °C	30 V	10 V	2.5 V	350 mW	1.4 V	P-Channel	SC-70-3	SC-70, SOT-323	5.06 nC	12 V	1.4 A	MOSFET (Metal Oxide)	409 pF
Alpha & Omega Semiconductor Inc. AO7404	Surface Mount	-55 °C	150 °C	20 V			350 mW	800 mV	N-Channel	SC-70-3	SC-70, SOT-323		8 V	1 A	MOSFET (Metal Oxide)	101 pF	1.8 V, 4.5 V	1.57 nC	225 mOhm
Alpha & Omega Semiconductor Inc. AO7408L	Surface Mount	-55 °C	150 °C	20 V			350 mW	1 V	N-Channel	SC-70-6	6-TSSOP, SC-88, SOT-363	4 nC	8 V	2 A	MOSFET (Metal Oxide)	320 pF	1.8 V, 4.5 V			62 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 20 V 1A (Ta) 350mW (Ta) Surface Mount SC-70-3
