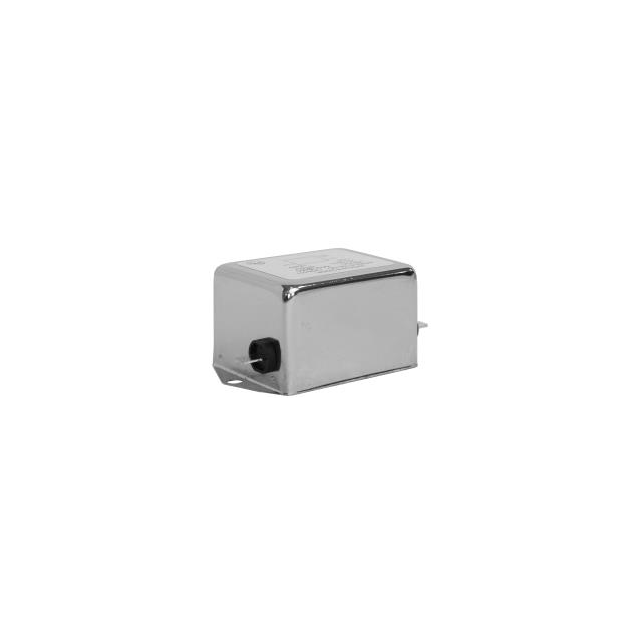

RP650-20-10-S

Active

Astrodyne TDI

LINE FILTER 250VAC 20A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 250VAC 20A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	RP650-20-10-S

Applications	General Purpose
Approval Agency	CSA, cURus, SEMKO, ENEC, CE
Configuration	Single Stage
Current	20 A
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (M4)
Voltage - Rated AC	250 V

Part	Current	Operating Temperature [custom]	Voltage - Rated AC	Mounting Type	Termination Style	Configuration	Approval Agency	Applications	Filter Type
Astrodyne TDI RP650-10-1000-QD	10 A	-25 °C 100 °C	250 V	Chassis Mount	Quick Connect	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-3-100-S	3 A	-25 °C 100 °C	250 V	Chassis Mount	Threaded Post (M4)	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-10-10-QD	10 A	-25 °C 100 °C	250 V	Chassis Mount	Quick Connect	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-3-10-QD	3 A	-25 °C 100 °C	250 V	Chassis Mount	Quick Connect	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-20-10-S	20 A	-25 °C 100 °C	250 V	Chassis Mount	Threaded Post (M4)	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-3-100-QD	3 A	-25 °C 100 °C	250 V	Chassis Mount	Quick Connect	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-3-10-W	3 A	-25 °C 100 °C	250 V	Chassis Mount	Wire Leads	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-10-100-QD	10 A	-25 °C 100 °C	250 V	Chassis Mount	Quick Connect	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-6-100-W	6 A	-25 °C 100 °C	250 V	Chassis Mount	Wire Leads	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC
Astrodyne TDI RP650-20-10-W	20 A	-25 °C 100 °C	250 V	Chassis Mount	Wire Leads	Single Stage	CE CSA cURus ENEC SEMKO	General Purpose	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 73.35

General part information

DC EMC/EMI Line Filter 20 A 250V Single Stage Threaded Post (M4)
