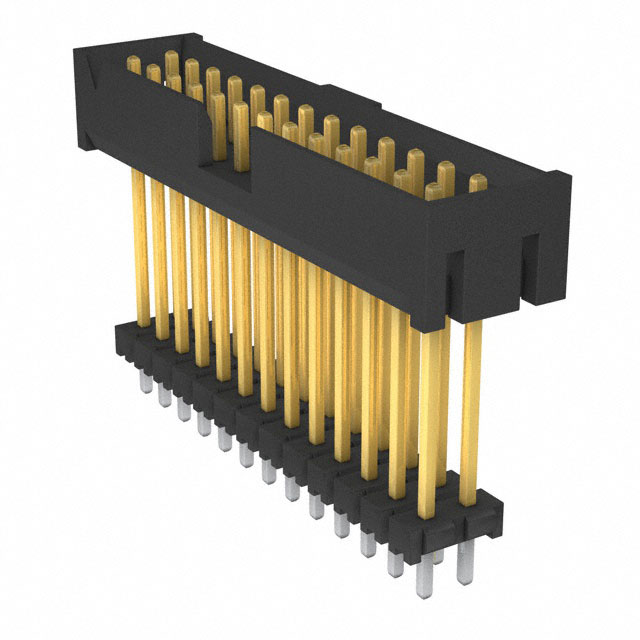

ZLTMM-113-74-S-D-588

Active

Samtec Inc.

2 TIN 2MM -55℃~+125℃ PHOSPHOR BRONZE STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

DocumentsDatasheet ZLTMM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-113-74-S-D-588

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.588 in
Insulation Height	14.94 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.673 in
Overall Contact Length	17.09 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

ZLTMM-113 Series

Part	Features	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Mounting Type	Connector Type	Insulation Height	Insulation Height	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Finish - Mating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Material	Number of Positions	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZLTMM-113-74-S-D-588	Keying Slot	All	3.05 mm	0.12 in	Through Hole	Elevated Header	0.588 in	14.94 mm	Square	-55 °C	125 °C	Male Pin	2	Tin	0.079 in	2 mm	Push-Pull	Gold	Solder	0.079 in	2 mm	0.673 in	17.09 mm	Phosphor Bronze	26	Nylon Polyamide (PA)	0.09 "	2.29 mm	Black	30 Áin	0.76 Ám	Shrouded - 4 Wall
Samtec Inc. ZLTMM-113-73-F-D-350	Keying Slot	All	3.05 mm	0.12 in	Through Hole	Elevated Header			Square	-55 °C	125 °C	Male Pin	2	Tin	0.079 in	2 mm	Push-Pull	Gold	Solder	0.079 in	2 mm	0.476 in	12.09 mm	Phosphor Bronze	26	Nylon Polyamide (PA)	0.151 in	3.84 mm	Black	3 µin	0.076 µm	Shrouded - 4 Wall	0.35 in	8.89 mm
Samtec Inc. ZLTMM-113-72-F-D-766	Keying Slot	All	3.05 mm	0.12 in	Through Hole	Elevated Header	0.766 in	19.46 mm	Square	-55 °C	125 °C	Male Pin	2	Tin	0.079 in	2 mm	Push-Pull	Gold	Solder	0.079 in	2 mm	0.851 in	21.62 mm	Phosphor Bronze	26	Nylon Polyamide (PA)			Black	3 µin	0.076 µm	Shrouded - 4 Wall			1.52 mm	0.06 in
