CD54HC273F
ActiveTexas Instruments
HIGH SPEED CMOS LOGIC OCTAL D-TYPE FLIP-FLOPS WITH RESET
Deep-Dive with AI
Search across all available documentation for this part.
CD54HC273F
ActiveTexas Instruments
HIGH SPEED CMOS LOGIC OCTAL D-TYPE FLIP-FLOPS WITH RESET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CD54HC273F | CD54HC273 Series |
|---|---|---|
| Clock Frequency | 60 MHz | 60 MHz |
| Current - Output High, Low | 5.2 mA, 5.2 mA | 5.2 mA |
| Current - Quiescent (Iq) | 8 ÁA | 8 ÁA |
| Input Capacitance | 10 pF | 10 pF |
| Max Propagation Delay @ V, Max CL | 26 ns | 26 ns |
| Mounting Type | Through Hole | Through Hole |
| Number of Bits per Element | 8 | 8 |
| Number of Elements [custom] | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 C | -55 C |
| Output Type | Non-Inverted | Non-Inverted |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | 0.3 in | 0.3 in |

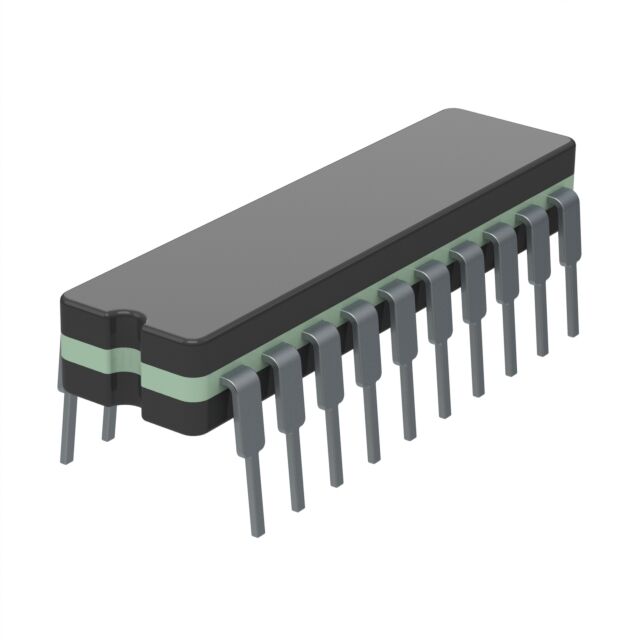

| Package / Case | 20-CDIP | 20-CDIP |
| Supplier Device Package | 20-CDIP | 20-CDIP |
| Trigger Type | Positive Edge | Positive Edge |
| Type | D-Type | D-Type |
| Voltage - Supply [Max] | 6 V | 6 V |
| Voltage - Supply [Min] | 2 V | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CD54HC273 Series
High Speed CMOS Logic Octal D-Type Flip-Flops with Reset
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output High, Low | Clock Frequency | Type | Supplier Device Package | Package / Case | Package / Case | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Max Propagation Delay @ V, Max CL | Number of Elements [custom] | Output Type | Current - Quiescent (Iq) | Number of Bits per Element | Trigger Type | Input Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CD54HC273F3AFlip Flop 1 Element D-Type 8 Bit Positive Edge 20-CDIP (0.300", 7.62mm) | -55 C | 125 °C | 5.2 mA, 5.2 mA | 60 MHz | D-Type | 20-CDIP | 7.62 mm | 0.3 in | 20-CDIP | 2 V | 6 V | Through Hole | 26 ns | 1 | Non-Inverted | 8 ÁA | 8 | Positive Edge | 10 pF |
-55 C | 125 °C | 5.2 mA, 5.2 mA | 60 MHz | D-Type | 20-CDIP | 7.62 mm | 0.3 in | 20-CDIP | 2 V | 6 V | Through Hole | 26 ns | 1 | Non-Inverted | 8 ÁA | 8 | Positive Edge | 10 pF |
Description
General part information
CD54HC273 Series
High Speed CMOS Logic Octal D-Type Flip-Flops with Reset
