36930
ObsoleteTE Connectivity AMP Connectors
CONN RING D-SHAPE 3/0AWG #5/8
36930
ObsoleteTE Connectivity AMP Connectors
CONN RING D-SHAPE 3/0AWG #5/8
Description
General part information
3693 Series

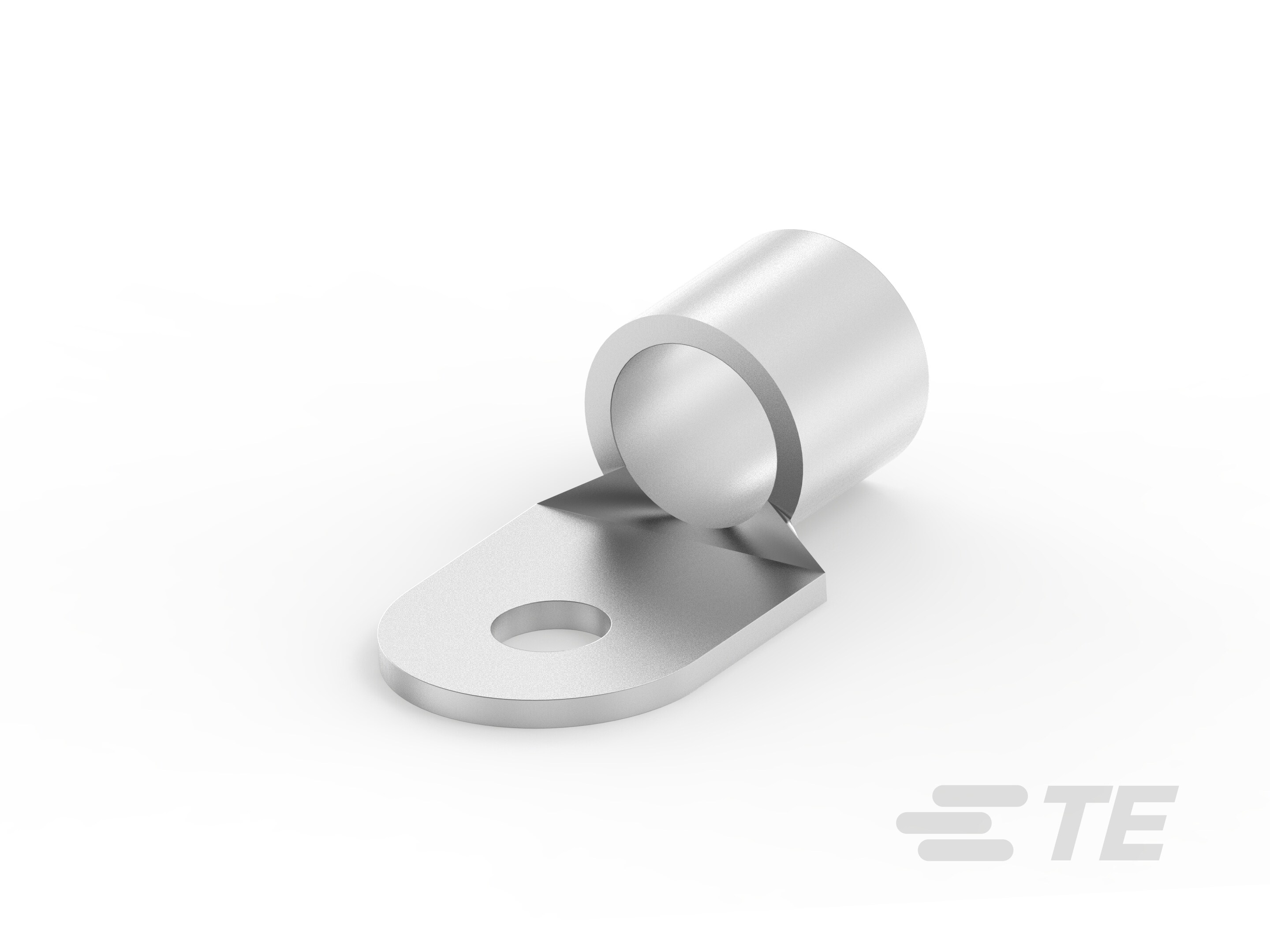

Ring Terminal Connector 5/8 Stud D-Shaped 3/0 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 36930 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 2.143 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.625 in |
| Stud/Tab Size | 8 Stud, 5 Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.091 in |
| Width - Outer Edges | 1.082 in |
| Wire Gauge | 3/0 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
