YB15RKW01-EB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

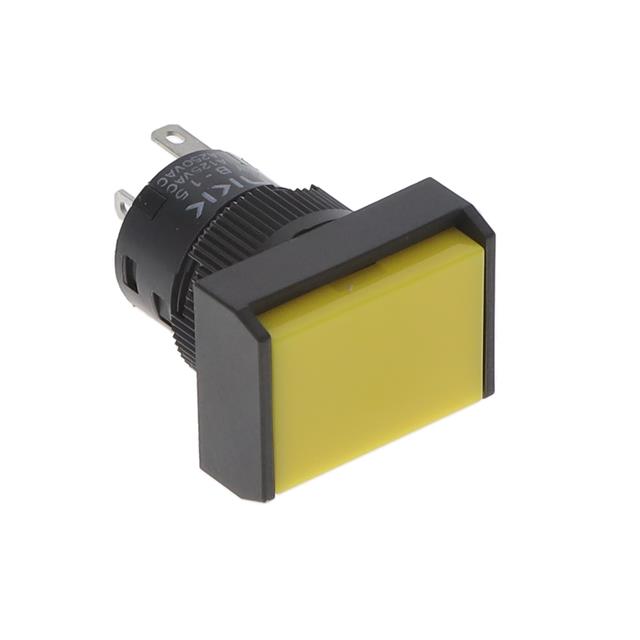

YB15RKW01-EB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15RKW01-EB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Yellow (White Filter/Diffuser)
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB15RK Series

Part	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mechanical Life	Actuator Type	Current Rating (Amps)	Circuit	Type	Voltage Rating - DC	Mounting Type	Features	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Electrical Life	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches YB15RKW01-CB	No Marking	70 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Red	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles
NKK Switches YB15RKW01-6B-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	3.3 VDC	LED White
NKK Switches YB15RKW01-2CF02-JC	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	2 VDC	Green/Red LED
NKK Switches YB15RKG01-5C-JC	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	0.4 VA	SPDT	Illuminated Standard	28 V	Panel Mount Front	Tactile Feedback	28 V	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	1.9 VDC	LED Red
NKK Switches YB15RKW01-5C-JC	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	1.9 VDC	LED Red
NKK Switches YB15RKW01-5C12-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	12 VDC	LED Red
NKK Switches YB15RKW01-5C-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	1.9 VDC	LED Red
NKK Switches YB15RKW01-EB	No Marking	70 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Yellow (White Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles
NKK Switches YB15RKG01-2CF05-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	0.4 VA	SPDT	Illuminated Standard	28 V	Panel Mount Front	Tactile Feedback	28 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	5 VDC	Green/Red LED
NKK Switches YB15RKG01-5D05-JD	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	0.4 VA	SPDT	Illuminated Standard	28 V	Panel Mount Front	Tactile Feedback	28 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	5 VDC	Amber LED
