HF319/25 100

Active

CBL RIBN 25COND 0.05 GRY FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HF319 Series Summary

HF319/25 100

Active

CBL RIBN 25COND 0.05 GRY FEET

Deep-Dive with AI

DocumentsDatasheet HF319 Series Summary

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.74
		1	$ 644.66
		1	$ 16.26
		1	$ 322.38
		5	$ 256.35
		5	$ 57.23
		5	$ 12.95
		5	$ 512.62
		10	$ 233.05
		10	$ 11.76
		10	$ 466.02
		10	$ 51.80
		25	$ 204.56
		25	$ 45.58
		25	$ 10.31
		50	$ 9.38
		50	$ 168.31
		50	$ 41.18
		100	$ 8.49
		100	$ 37.55
	Digi-Spool®, Continuous Spool	1	$ 16.60
		2	$ 15.06
		3	$ 14.23
		5	$ 13.23
		7	$ 12.62
		10	$ 11.99
		25	$ 10.53
		50	$ 9.54
		100	$ 8.66
	Spool	1	$ 1284.84
		5	$ 1021.68
		10	$ 928.80

Description

General part information

HF319 Series

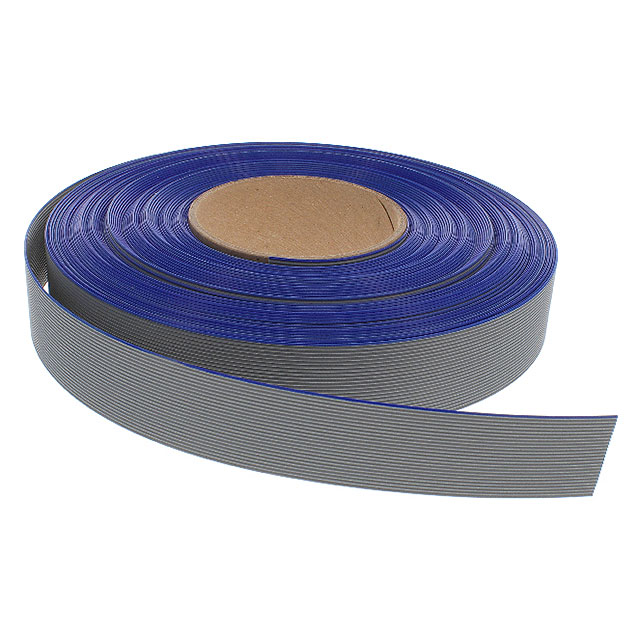

Flat Ribbon Cable Gray 25 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

HF319 Series Summary

Datasheet

Specification	HF319/25 100	HF319 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper Alloy, Silver Coated	Copper Alloy, Silver Coated
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [custom]	40 AWG	40 AWG
Features	Zippable	Splice Free, Zippable
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	15.24 m, 7.62 m, 304.8 mm	7.62 - 304.8 m
Length	50 ft, 25 ft, 1 ft	1 - 300 ft
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length [x]	100 ft	10 - 100 ft
Length [x]	30.48 m	3.05 - 30.48 m
Number of Conductors	25	6 - 50
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	-	0.3 - 2.5 "
Ribbon Width	-	1 - 63.5 mm
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.8 - 1.5 in
Ribbon Width	-	20.32 - 38.1 mm
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width [x]	1.25 "	0.7 - 1.25 "
Ribbon Width [x]	31.75 mm	17.78 - 31.75 mm
Shielding	Unshielded	Unshielded
Spool Size	30.48 m	30.48 - 91.44 m
Spool Size	100 ft	100 - 300 ft
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

Part

Ribbon Thickness

Insulation Resistance

Pitch [x]

Shielding

Jacket Color

Number of Conductors

Ribbon Width

Features

First Conductor Mark

Voltage

Conductor Strand [custom]

Cable Type

Conductor Material

Operating Temperature [Min]

Operating Temperature [Max]

Jacket (Insulation) Material

Wire Gauge

Ratings

Length

Length [x]

Ribbon Width

Ribbon Width [y]

Ribbon Width [x]

Length

Spool Size

Ribbon Width [custom]

HF319/26SF

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

1.3 "

33.02 mm

Splice Free

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

HF319/20 (300')

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

1 in

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

25 ft, 300 ft

7.62 m, 91.44 m

100 ft

30.48 m

25.4 mm

HF319/24 (100')

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

50 ft

15.24 m

100 ft

30.48 m

1.2 in

30.48 mm

HF319/25 100

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

1 ft, 25 ft, 50 ft

7.62 m, 15.24 m, 304.8 mm

100 ft

30.48 m

1.25 "

31.75 mm

Enter Number of Feet in Order Quantity

30.48 m

100 ft

HF319/06 (300')

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

0.3 in

7.62 mm

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

1 ft, 25 ft, 50 ft, 300 ft

7.62 m, 15.24 m, 91.44 m, 304.8 mm

10 ft, 100 ft

3.05 m, 30.48 m

Enter Number of Feet in Order Quantity

91.44 m

300 ft

HF319/30 (100')

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

1 ft, 50 ft

15.24 m, 304.8 mm

10 ft, 100 ft

3.05 m, 30.48 m

1.5 in

38.1 mm

Enter Number of Feet in Order Quantity

30.48 m

100 ft

HF319/50 (100')

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

2.5 "

63.5 mm

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

25 ft, 50 ft

7.62 m, 15.24 m

HF319/10 (300')

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

1 ft, 25 ft, 50 ft, 300 ft

7.62 m, 15.24 m, 91.44 m, 304.8 mm

10 ft

3.05 m

0.5 "

12.7 mm

HF319/26

100 ft

30.48 m

HF319/14 100

0.89 mm

0.035 in

10 GOhm

0.05 in

1.27 mm

Unshielded

Gray

Zippable

Blue

300 V

19 Strands

40 AWG

Flat Cable

Copper Alloy, Silver Coated

-40 °C

105 ░C

Polyolefin (PO)

28 AWG

UL Style 21682

1 ft, 25 ft

7.62 m, 304.8 mm

100 ft

30.48 m

0.7 in

17.78 mm

Part	Ribbon Thickness	Ribbon Thickness	Insulation Resistance	Pitch [x]	Pitch [x]	Shielding	Jacket Color	Number of Conductors	Ribbon Width	Ribbon Width	Features	First Conductor Mark	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Ratings	Length	Length	Length [x]	Length [x]	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Length	Spool Size	Spool Size	Ribbon Width [custom]	Ribbon Width [custom]
3M HF319/26SF	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	26	1.3 "	33.02 mm	Splice Free	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG
3M HF319/20 (300')	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	20		1 in	Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	25 ft, 300 ft	7.62 m, 91.44 m	100 ft	30.48 m	25.4 mm
3M HF319/24 (100')	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	24			Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	50 ft	15.24 m	100 ft	30.48 m		1.2 in	30.48 mm
3M HF319/25 100	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	25			Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	1 ft, 25 ft, 50 ft	7.62 m, 15.24 m, 304.8 mm	100 ft	30.48 m				1.25 "	31.75 mm	Enter Number of Feet in Order Quantity	30.48 m	100 ft
3M HF319/06 (300')	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	6	0.3 in	7.62 mm	Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	1 ft, 25 ft, 50 ft, 300 ft	7.62 m, 15.24 m, 91.44 m, 304.8 mm	10 ft, 100 ft	3.05 m, 30.48 m						Enter Number of Feet in Order Quantity	91.44 m	300 ft
3M HF319/30 (100')	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	30			Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	1 ft, 50 ft	15.24 m, 304.8 mm	10 ft, 100 ft	3.05 m, 30.48 m		1.5 in	38.1 mm			Enter Number of Feet in Order Quantity	30.48 m	100 ft
3M HF319/50 (100')	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	50	2.5 "	63.5 mm	Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	25 ft, 50 ft	7.62 m, 15.24 m
3M HF319/10 (300')	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	10			Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	1 ft, 25 ft, 50 ft, 300 ft	7.62 m, 15.24 m, 91.44 m, 304.8 mm	10 ft	3.05 m									0.5 "	12.7 mm
3M HF319/26																									100 ft	30.48 m
3M HF319/14 100	0.89 mm	0.035 in	10 GOhm	0.05 in	1.27 mm	Unshielded	Gray	14			Zippable	Blue	300 V	19 Strands	40 AWG	Flat Cable	Copper Alloy, Silver Coated	-40 °C	105 ░C	Polyolefin (PO)	28 AWG	UL Style 21682	1 ft, 25 ft	7.62 m, 304.8 mm	100 ft	30.48 m				0.7 in	17.78 mm
