1SNL325010R0000
ActiveTE Connectivity ENTRELEC
DBL250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SNL325010R0000
ActiveTE Connectivity ENTRELEC
DBL250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1SNL325010R0000 | 1SNL Series |
|---|---|---|
| Current Rating (Amps) | 225 A | 80 - 510 A |
| Line Side Connection Type | Screw Connection | Screw Connection |
| Line Side Connections Per Pole | 1 | 1 - 3 |
| Line Side Wire/Stud Size | - | 2 - 250 MCM |
| Line Side Wire/Stud Size | - | 250 kcmil |
| Line Side Wire/Stud Size | - | 6 AWG |
| Line Side Wire/Stud Size | - | 14 AWG |
| Load Side Connection Type | Screw Connection | Screw Connection |
| Load Side Connections Per Pole | 11 | 4 - 14 |
| Load Side Wire/Stud Size | - | 2 - 250 kcmil |
| Load Side Wire/Stud Size | - | 14 AWG |
| Load Side Wire/Stud Size | - | 6 AWG |
| Number of Poles | 1 | 1 - 3 |
| Type | Power Distribution Block | Power Distribution Block |
| Voltage - Rated | 1000 V | 1000 V |
1SNL Series
DBL500-22
| Part | Load Side Connection Type | Load Side Wire/Stud Size | Line Side Wire/Stud Size | Line Side Wire/Stud Size | Line Side Connection Type | Line Side Connections Per Pole | Load Side Connections Per Pole | Current Rating (Amps) | Voltage - Rated | Number of Poles | Type | Line Side Wire/Stud Size [Min] | Line Side Wire/Stud Size [Max] | Load Side Wire/Stud Size [Max] | Load Side Wire/Stud Size [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity ENTRELEC 1SNL850001R0000 | Screw Connection | 250 kcmil | 250 MCM | 250 kcmil | Screw Connection | 1 | 4 | 510 A | 1000 V | 1 | Power Distribution Block | ||||
TE Connectivity ENTRELEC 1SNL325060R0000 | Screw Connection | Screw Connection | 1 | 7 | 250 A | 1000 V | 1 | Power Distribution Block | 6 AWG | 14 AWG | 14 AWG | 6 AWG | |||
TE Connectivity ENTRELEC 1SNL312510R0000 | Screw Connection | Screw Connection | 1 | 7 | 115 A | 1000 V | 1 | Power Distribution Block | |||||||
TE Connectivity ENTRELEC 1SNL312530R0000 | Screw Connection | Screw Connection | 3 | 8 | 115 A | 1000 V | 3 | Power Distribution Block | |||||||
TE Connectivity ENTRELEC 1SNL325010R0000 | Screw Connection | Screw Connection | 1 | 11 | 225 A | 1000 V | 1 | Power Distribution Block | |||||||
TE Connectivity ENTRELEC 1SNL317510R0000 | Screw Connection | 2 aught AWG | 2 aught AWG | Screw Connection | 1 | 12 | 175 A | 1000 V | 1 | Power Distribution Block | |||||
TE Connectivity ENTRELEC 1SNL308010R0000 | Screw Connection | Screw Connection | 1 | 6 | 80 A | 1000 V | 1 | Power Distribution Block | |||||||
TE Connectivity ENTRELEC 1SNL340011R0000 | Screw Connection | 250 kcmil | 250 MCM | 250 kcmil | Screw Connection | 1 | 14 | 400 A | 1000 V | 1 | Power Distribution Block | ||||
TE Connectivity ENTRELEC 1SNL317531R0000 | Screw Connection | 2 aught AWG | 2 aught AWG | Screw Connection | 3 | 8 | 175 A | 1000 V | 3 | Power Distribution Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 53.52 | |
| 10 | $ 46.48 | |||
Description
General part information
1SNL Series

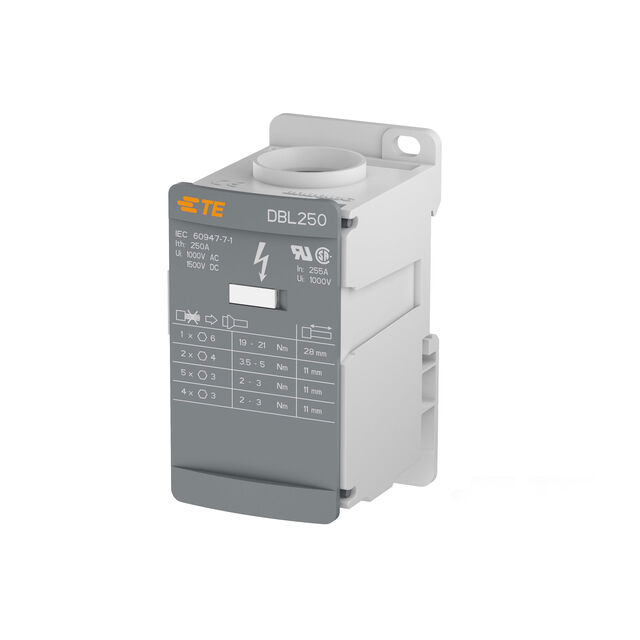

1 Pole Power Distribution Block 225 A 1000 V
