Specification	RT0W01626SNHEC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	26
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert (Maximum)	26
Shell Size - Insert (Minimum)	16 S
Shielding	Shielded
Type	For Female Sockets

RT0W01626 Series

Part	Housing Color	Number of Positions	Shell Finish	Note	Insert Material	Connector Type	Features	Shielding	Type	Fastening Type	Mounting Type	Orientation	Contact Size	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Mounting Feature	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Contact Shape	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Material Flammability Rating	Includes	Includes Total Count
McGill Microwave Systems RT0W01626PNHEC03
McGill Microwave Systems RT0W01626SNHEC03
McGill Microwave Systems RT0W01626SNHEC	Silver	26	Nickel	Contacts Not Included	Thermoplastic	Receptacle Housing	Backshell	Shielded	For Female Sockets	Bayonet Lock	Panel Mount	N (Normal)	20	16 S	26	Flange	-40 °C	105 °C	Crimp	Circular	Dust Tight Waterproof	IP67	Zinc Alloy	UL94 V-0

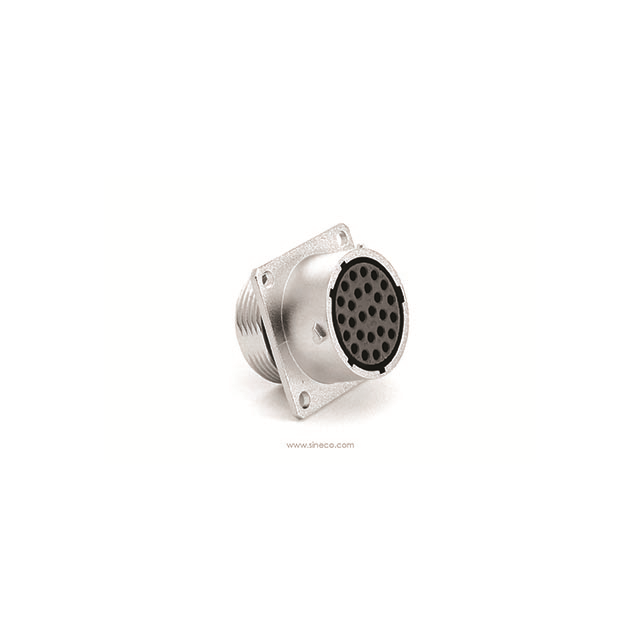

McGill Microwave Systems RT0W01626SNH03	Silver	26	Nickel	Contacts Not Included	Thermoplastic	Receptacle Housing		Shielded	For Female Sockets	Bayonet Lock	Panel Mount	N (Normal)	20	16 S	26	Flange	-40 °C	125 °C	Crimp	Circular	Dust Tight Waterproof	IP67	Zinc Alloy	UL94 V-0	Connector Gasket O-Ring	3 pcs
