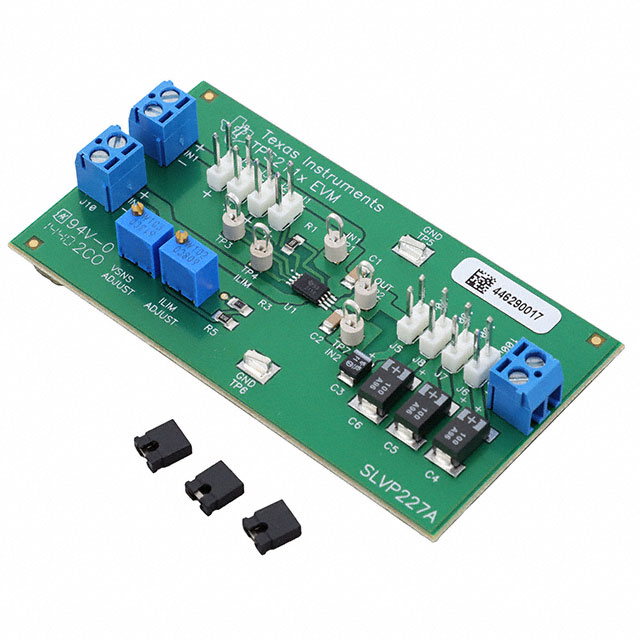

TPS2113EVM
ActiveTPS2113 POWER MUXE 2.8V TO 5.5V OUTPUT EVALUATION BOARD
Deep-Dive with AI
Search across all available documentation for this part.
TPS2113EVM
ActiveTPS2113 POWER MUXE 2.8V TO 5.5V OUTPUT EVALUATION BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS2113EVM | TPS2113 Series |
|---|---|---|
| Applications | - | Handheld/Mobile Devices |
| Current - Output (Max) | - | 1.25 A |
| Current - Supply | - | 55 µA |
| Delay Time - OFF | - | 5 ms |
| Delay Time - ON | - | 1 ms |
| FET Type | - | N-Channel |
| Function | Power Distribution Switch (Load Switch) | Power Distribution Switch (Load Switch) |
| Internal Switch(s) | - | True |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-TSSOP, 8-VDFN Exposed Pad |
| Package / Case | - | 0.173 " |
| Package / Case | - | 4.4 mm |
| Ratio - Input:Output | - | 2:1 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-TSSOP, 8-SON (3x3) |
| Type | Power Management | Source Selector Switch, Power Management |
| Utilized IC / Part | TPS2113 | TPS2113 |
TPS2113 Series
2.8-V to 5.5-V, 84-mΩ, 1.25-A, power mux with automatic switchover and status output
| Part | Type | Current - Output (Max) [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Internal Switch(s) | Supplier Device Package | Ratio - Input:Output | Mounting Type | Current - Supply | Package / Case | Package / Case [custom] | Package / Case [custom] | Delay Time - OFF | Delay Time - ON | Utilized IC / Part | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS2113PW | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-TSSOP | 2:1 | Surface Mount | 55 µA | 8-TSSOP | 0.173 " | 4.4 mm | 5 ms | 1 ms | ||||
Texas Instruments TPS2113APWR | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-TSSOP | 2:1 | Surface Mount | 55 µA | 8-TSSOP | 0.173 " | 4.4 mm | 5 ms | 1 ms | ||||
Texas Instruments TPS2113ADRBT | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-SON (3x3) | 2:1 | Surface Mount | 55 µA | 8-VDFN Exposed Pad | 5 ms | 1 ms | ||||||
Texas Instruments TPS2113PWG4 | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-TSSOP | 2:1 | Surface Mount | 55 µA | 8-TSSOP | 0.173 " | 4.4 mm | 5 ms | 1 ms | ||||
Texas Instruments TPS2113APWRG4 | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-TSSOP | 2:1 | Surface Mount | 55 µA | 8-TSSOP | 0.173 " | 4.4 mm | 5 ms | 1 ms | ||||
Texas Instruments TPS2113EVM | Power Management | TPS2113 | Board(s) | Power Distribution Switch (Load Switch) | |||||||||||||||
Texas Instruments TPS2113APW | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-TSSOP | 2:1 | Surface Mount | 55 µA | 8-TSSOP | 0.173 " | 4.4 mm | 5 ms | 1 ms | ||||
Texas Instruments TPS2113PWRG4 | Source Selector Switch | 1.25 A | Handheld/Mobile Devices | 85 °C | -40 °C | N-Channel | 8-TSSOP | 2:1 | Surface Mount | 55 µA | 8-TSSOP | 0.173 " | 4.4 mm | 5 ms | 1 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.80 | |
Description
General part information
TPS2113 Series
The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
