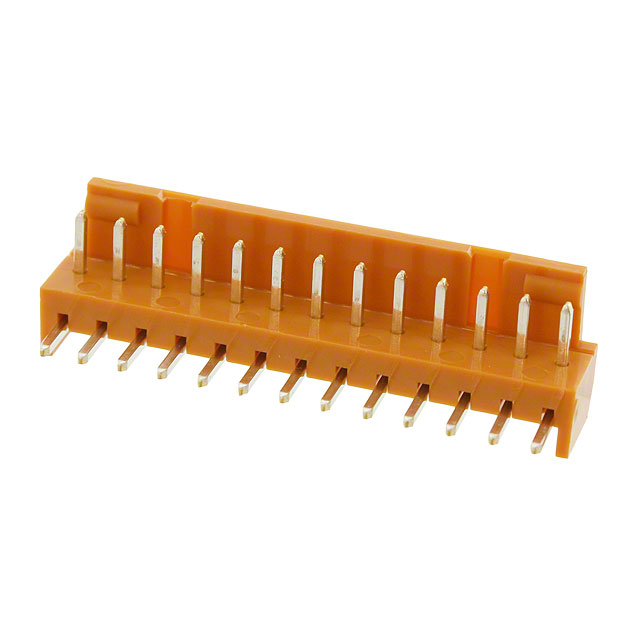

IL-G-13P-S3L2-SA

Active

JAE Electronics

CONN HEADER R/A 13POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 13POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-G-13P-S3L2-SA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Material	Fastening Type	Style	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Material Flammability Rating	Contact Type	Shrouding	Termination	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Material	Connector Type	Number of Positions
JAE Electronics IL-G-13P-S3L2-SA	Polyamide (PA66) Nylon 6/6	Friction Lock	Board to Cable/Wire	3.5 mm	0.138 in	6 mm	0.236 in	All	Through Hole Right Angle	85 °C	-40 °C	Brown	Tin	2.5 mm	0.098 in	1	UL94 V-0	Male Pin	Shrouded - 1 Wall	Solder	3 A	4 mm	0.157 in	Square	Brass	Header	13

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	658	$ 0.69

General part information

Connector Header Through Hole, Right Angle 13 position 0.098" (2.50mm)
