770872-2
ActiveTE Connectivity AMP Connectors

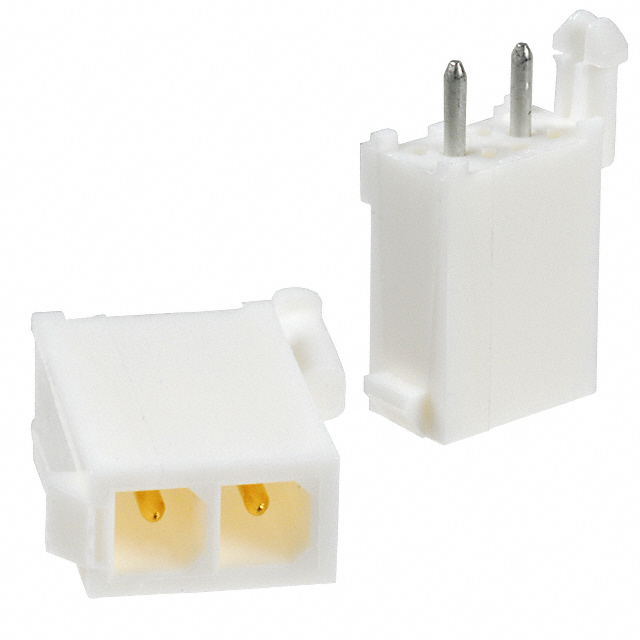

CONN HEADER VERT 2POS 4.14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770872-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 2POS 4.14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770872-2 | 770872 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Tin-Lead, Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 - 150 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 - 3.81 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 4.45 mm | 4.45 mm |
| Contact Length - Post | 0.175 in | 0.175 in |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | White | White |
| Insulation Height | 13.5 mm | 13.5 mm |
| Insulation Height | 0.531 in | 0.531 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 2 | 2 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 85 - 105 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch - Mating | 4.14 mm | 4.14 mm |
| Pitch - Mating | 0.163 in | 0.163 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
770872 Series
CONN HEADER VERT 2POS 4.14MM
| Part | Termination | Number of Positions Loaded | Contact Type | Insulation Height | Insulation Height | Insulation Material | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish - Post | Insulation Color | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Mounting Type | Material Flammability Rating | Number of Positions | Style | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Material | Applications | Current Rating (Amps) | Contact Shape | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770872-1 | Solder | All | Male Pin | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | 4.14 mm | 0.163 in | Header | Tin-Lead | White | 4.45 mm | 0.175 in | Tin-Lead | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Through Hole | UL94 V-0 | 2 | Board to Cable/Wire | 85 °C | -20 C | Locking Ramp | 150 Áin | 3.81 Ám | 600 VAC | Brass | General Purpose | Varies by Wire Gauge | Circular | 1 |
TE Connectivity AMP Connectors 770872-2 | Solder | All | Male Pin | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | 4.14 mm | 0.163 in | Header | Tin-Lead | White | 4.45 mm | 0.175 in | Gold | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Through Hole | UL94 V-0 | 2 | Board to Cable/Wire | 105 ░C | -20 C | Locking Ramp | 30 Áin | 0.76 Ám | 600 VAC | Brass | General Purpose | Varies by Wire Gauge | Circular | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.84 | |
| 10 | $ 1.68 | |||
| 200 | $ 1.50 | |||
| 1000 | $ 1.20 | |||
| 5000 | $ 1.08 | |||
Description
General part information
770872 Series
Connector Header Through Hole 2 position 0.163" (4.14mm)
