770872-1

Obsolete

TE Connectivity AMP Connectors

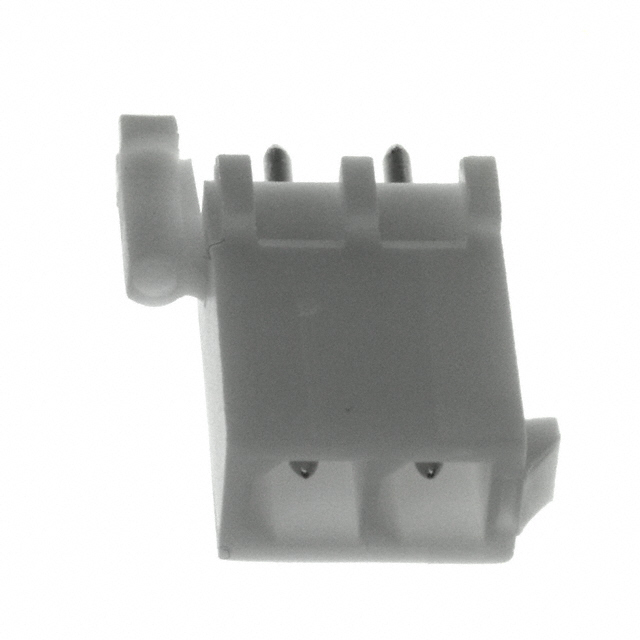

CONN HEADER VERT 2POS 4.14MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770872-1	770872 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead, Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	150 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	3.81 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER VERT 2POS 4.14MM

Part	Termination	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Insulation Material	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Mounting Type	Material Flammability Rating	Number of Positions	Style	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Material	Applications	Current Rating (Amps)	Contact Shape	Number of Rows
TE Connectivity AMP Connectors 770872-1	Solder	All	Male Pin	13.5 mm	0.531 in	Nylon, Polyamide (PA)	4.14 mm	0.163 in	Header	Tin-Lead	White	4.45 mm	0.175 in	Tin-Lead	150 Áin	3.81 Ám	Shrouded - 4 Wall	Through Hole	UL94 V-0	2	Board to Cable/Wire	85 °C	-20 C	Locking Ramp	150 Áin	3.81 Ám	600 VAC	Brass	General Purpose	Varies by Wire Gauge	Circular	1
TE Connectivity AMP Connectors 770872-2	Solder	All	Male Pin	13.5 mm	0.531 in	Nylon, Polyamide (PA)	4.14 mm	0.163 in	Header	Tin-Lead	White	4.45 mm	0.175 in	Gold	150 Áin	3.81 Ám	Shrouded - 4 Wall	Through Hole	UL94 V-0	2	Board to Cable/Wire	105 ░C	-20 C	Locking Ramp	30 Áin	0.76 Ám	600 VAC	Brass	General Purpose	Varies by Wire Gauge	Circular	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.163" (4.14mm)
