HS2C9M26C

Active

Switchcraft Inc.

CONN PLUG MALE 9POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE 9POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C9M26C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	30 VAC

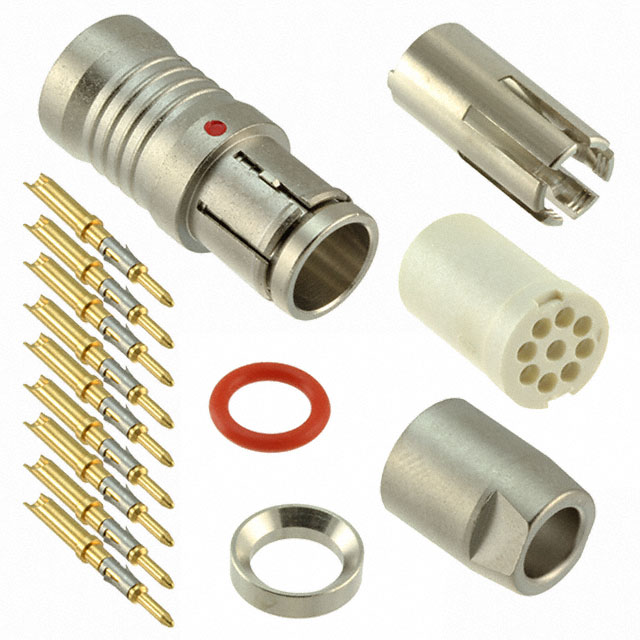

CONN PLUG MALE 9POS GOLD CRIMP

Part	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Connector Type	Contact Finish - Mating	Material Flammability Rating	Insert Material	Primary Material	Contact Material	Termination	Applications	Ingress Protection	Shell Finish	Shell Material	Color	Mounting Type	Number of Positions	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Voltage Rating
Switchcraft Inc. HS2C9M26C	Shielded	5.49 mm	4.57 mm	0.18 in	0.216 in	Male Pins, Plug	Gold	UL94 HF-1	Liquid Crystal Polymer (LCP)	Metal	Copper Alloy	Crimp, Solder Cup	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Electroless Nickel	Copper Alloy	Silver	Free Hanging (In-Line)	9	Keyed	135 °C	-40 °C	Push-Pull	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
