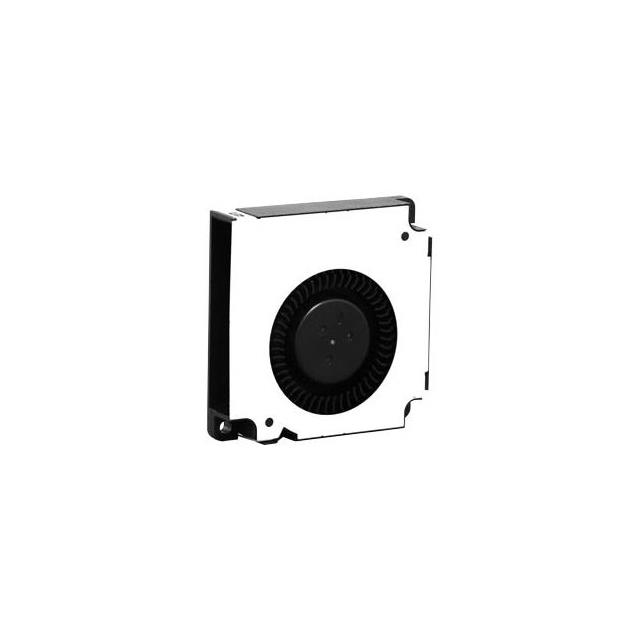

BFB0505LA-C

Active

Delta Electronics

FAN BLOWER 50X10.3MM 5VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 50X10.3MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Width [y]	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Noise	Current Rating (Amps)	Static Pressure	Static Pressure	RPM	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Fan Type	Material - Frame	Voltage - Rated	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Features
Delta Electronics BFB0505LA-C	Plastic	10.3 mm	CE CSA UL VDE	3 V	5.5 V	22.68 g	0.05 lb	22.5 dB	60 mA	51.8 Pa	0.208 in H2O	3500 RPM	300 mW	50 mm	50 mm	Ball	Blower	Plastic	5 V	2.2 CFM	0.061 m³/min	2 Wire Leads
Delta Electronics BFB0505HA-C	Plastic	10.3 mm	CE CSA UL VDE	3 V	5.5 V	22.68 g	0.05 lb	32.5 dB	0.18 A	140.2 Pa	0.563 in H2O	5100 RPM	0.9 W	50 mm	50 mm	Ball	Blower	Plastic	5 V	3.5 CFM	0.098 mł/min	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
Delta Electronics BFB0505HHA-CF00	Plastic	10.3 mm	CE CSA UL VDE	3 V	5.5 V	22.68 g	0.05 lb	37.5 dB(A)	0.26 A	196.8 Pa	0.79 in H2O	5900 RPM	1.3 W	50 mm	50 mm	Ball	Blower	Plastic	5 V	4 CFM	0.112 m³/min	3 Wire Leads						Speed Sensor (Tach)
Delta Electronics BFB0505HA-CR00	Plastic	10.3 mm	CE CSA UL VDE	3 V	5.5 V	22.68 g	0.05 lb	32.5 dB	0.18 A	140.2 Pa	0.563 in H2O	5100 RPM	0.9 W	50 mm	50 mm	Ball	Blower	Plastic	5 V	3.5 CFM	0.098 mł/min	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	336	$ 10.11

General part information

Fan Blower 5VDC Square - 50mm L x 50mm H Ball 2.2 CFM (0.061m³/min) 2 Wire Leads
