T37121-07-0

Active

Curtis Industries

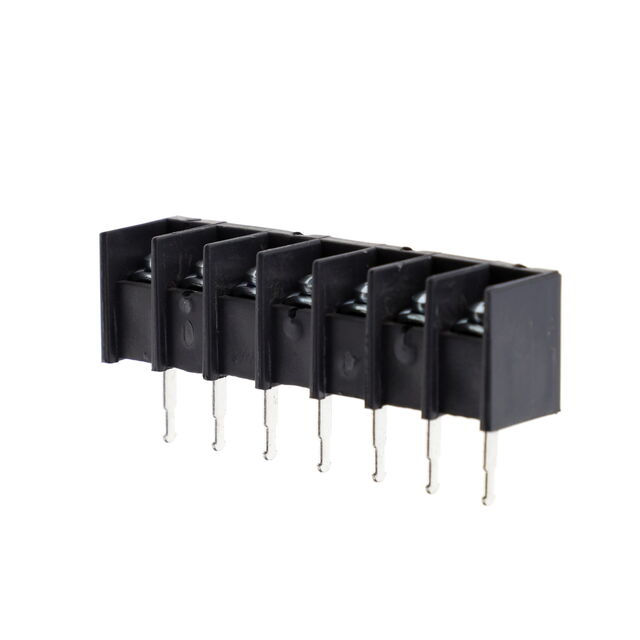

CONN BARRIER STRIP 7CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37121-07-0

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T37121-07-0	T37121 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Solder Turret	Solder Turret
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	7	1 - 24
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	7	2 - 20
Number of Wire Entries	-	1 - 22
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

T37121 Series

CONN BARRIER STRIP 8CIRC 0.375"

Part	Number of Circuits [custom]	Barrier Type	Number of Rows	Material Flammability Rating	Material - Insulation	Number of Wire Entries	Pitch [x]	Pitch [x]	Top Termination	Operating Temperature	Current Rating (Amps)	Voltage Rating	Bottom Termination	Mounting Type	Terminal Block Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Number of Wire Entries [custom]
Curtis Industries T37121-08-0	8	3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	8	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG
Curtis Industries T37121-14-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	14	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	14
Curtis Industries T37121-01-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)				Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	1	1
Curtis Industries T37121-16-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	16	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	16
Curtis Industries T37121-12-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	12	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	12
Curtis Industries T37121-19-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	19	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	19
Curtis Industries T37121-07-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	7	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	7
Curtis Industries T37121-22-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)		9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	22	22
Curtis Industries T37121-24-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)		9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	24
Curtis Industries T37121-20-0		3 Wall (Tri)	1	UL94 V-0	Polypropylene (PP)	20	9.53 mm	0.375 in	Screws with Captive Plate	105 C	20 A	300 VDC	Solder Turret	Chassis, Panel, Through Hole	Barrier Block	12 AWG	22 AWG	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.17
		10	$ 5.65
		25	$ 5.38
		50	$ 4.88
		100	$ 4.69
		250	$ 4.14
		500	$ 3.86
		1000	$ 3.58

Description

General part information

T37121 Series

7 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
