Technical Specifications
Parameters and characteristics for this part
| Specification | EVLVIPGAN65PD |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | USB Type-C Power Delivery (PD) |
| Primary Attributes [Max] | 264 VAC |
| Primary Attributes [Min] | 90 VAC |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | VIPERGAN65, STUSB4761 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 106.25 | |
Description
General part information
EVLVIPGAN65PD Series

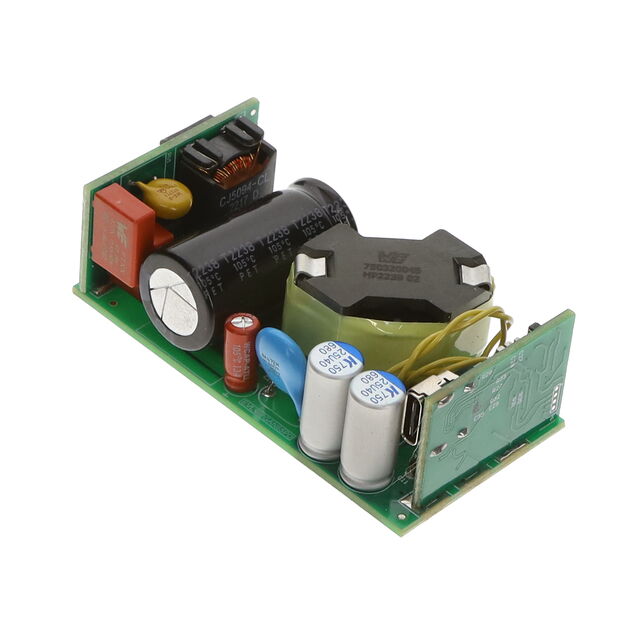

The EVLVIPGAN65PD is a 65 W USB Type-C® Power Delivery 3.0 adapter reference design. It is an isolated power supply with a standalone USB PD controller. The evaluation board implements at the primary side a quasi-resonant flyback converter based on the VIPERGAN65 HV converter with optocoupler feedback for voltage regulation. This controller combines a high performance low-voltage PWM controller chip with a 650 V HV startup cell in the same package. The advanced power management with the low quiescent helps to achieve low standby consumptions.
At the secondary side, to increase the system efficiency, the rectification is based on the SRK1001 adaptive synchronous rectification controller.
Also on the secondary side, the CC/CV regulation loop to drive the power regulation stage and the USB Type-C®PD interface is based on the STUSB4761 controller. This controller offers the benefits of a full hardware USB PD stack allowing robust, deterministic, and safe negotiation in line with USB PD standards.
