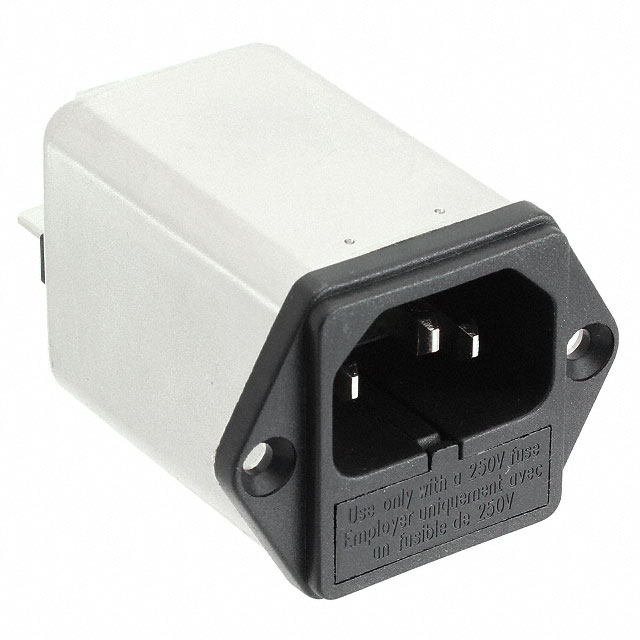

06BEEG3F

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	06BEEG3F	06BEEG Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Features	-	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	Rectangular	Rectangular
Panel Cutout Dimensions [x]	29 mm	29 mm
Panel Cutout Dimensions [y]	33.1 mm	33.1 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Accomodates a Fuse	Current Rating - Appliance Inlet	Features	Current Rating - Filter	Connector Style	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Fuse Holder, Drawer	Termination	Filter Type	Connector Type
Delta Electronics 06BEEG3FM-R	CSA, UL, VDE		6 A	Bleed Resistor	6 A	IEC 320-C14	Rectangular	29 mm	33.1 mm	Flange, Panel Mount	115 VAC	250 VAC	Fuse Holder, Twin Fused	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	Receptacle, Male Blades - Module
Delta Electronics 06BEEG3F	CSA, UL, VDE		6 A		6 A	IEC 320-C14	Rectangular	29 mm	33.1 mm	Flange, Panel Mount	115 VAC	250 VAC	Fuse Holder, Twin Fused	Quick Connect	Filtered (EMI, RFI) - Commercial	Receptacle, Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	189	$ 12.29

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
