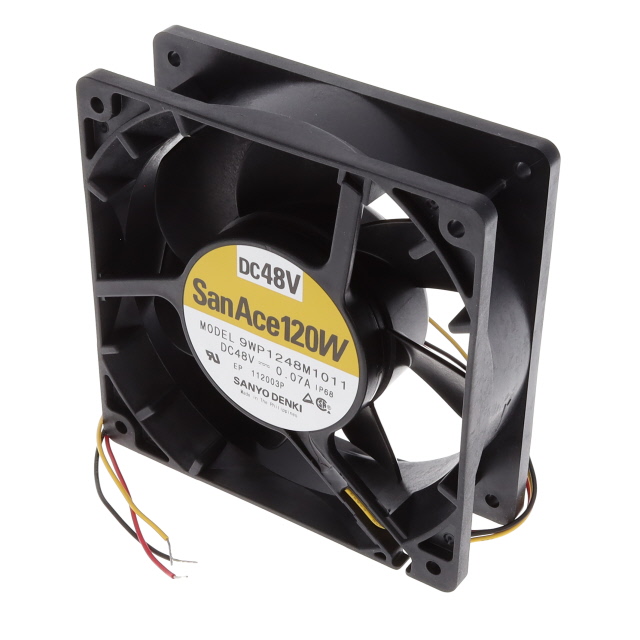

Specification	9WP1248M1011

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	3.36 W
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Width	38 mm

9WP1248 Series

Part	Air Flow	Width	RPM	Power (Watts)	Features	Weight	Operating Temperature (Min)	Operating Temperature (Max)	Noise	Bearing Type	Fan Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Approval Agency	Termination Leads Count	Termination Type	Termination	Static Pressure	Ingress Protection IP Rating	Ingress Protection Description	Voltage - Rated	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Material - Frame	Lifetime
Sanyo Denki America Inc. 9WP1248H1021	99 CFM	38 mm	2600 RPM	5.28 W	Locked Rotor Protection	0.794 lb	-4 °F	158 °F	39 dB	Ball	Tubeaxial	120 mm	Square	120 mm	CSA TUV UL	2 leads	Wire Leads	2 Wire Leads	0.283 in H2O	IP68	Dust Tight Waterproof	48 VDC	110 mA	55.2 VDC	40.8 VDC	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9WP1248H1011	99 CFM	38 mm	2600 RPM	5.28 W	Speed Sensor (Tach)	0.794 lb	-4 °F	158 °F	39 dB	Ball	Tubeaxial	120 mm	Square	120 mm	CSA TUV UL	3	Wire Leads	3 Wire Leads	0.283 in H2O	IP68	Dust Tight Waterproof	48 VDC	110 mA	55.2 VDC	40.8 VDC	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9WP1248H102	99 CFM	38 mm	2600 RPM	5.28 W		0.794 lb	-4 °F	158 °F	39 dB	Ball	Tubeaxial	120 mm	Square	120 mm	CSA TUV UL	2 leads	Wire Leads	2 Wire Leads	0.283 in H2O	IP68	Dust Tight Waterproof	48 VDC	110 mA	55.2 VDC	40.8 VDC	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9WP1248M1011		38 mm		3.36 W	Locked Rotor Protection Speed Sensor (Tach)					Ball	Tubeaxial	120 mm	Square	120 mm		3	Wire Leads	3 Wire Leads		IP68	Dust Tight Waterproof	48 VDC				Plastic	Plastic
Sanyo Denki America Inc. 9WP1248H101	99 CFM	38 mm	2600 RPM	5.28 W	Speed Sensor (Tach)	0.794 lb	-4 °F	158 °F	39 dB	Ball	Tubeaxial	120 mm	Square	120 mm	CSA TUV UL	3	Wire Leads	3 Wire Leads	0.283 in H2O	IP68	Dust Tight Waterproof	48 VDC	110 mA	55.2 VDC	40.8 VDC	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9WP1248H1D01	99 CFM	38 mm	2600 RPM	5.28 W	Locked Rotor Sensor	0.794 lb	-4 °F	158 °F	39 dB	Ball	Tubeaxial	120 mm	Square	120 mm	CSA TUV UL	3	Wire Leads	3 Wire Leads	0.283 in H2O	IP68	Dust Tight Waterproof	48 VDC	110 mA	55.2 VDC	40.8 VDC	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9WP1248M101		38 mm		3.36 W	Locked Rotor Protection Speed Sensor (Tach)					Ball	Tubeaxial	120 mm	Square	120 mm		3	Wire Leads	3 Wire Leads		IP68	Dust Tight Waterproof	48 VDC				Plastic	Plastic
Sanyo Denki America Inc. 9WP1248M1021		38 mm		3.36 W	Locked Rotor Protection					Ball	Tubeaxial	120 mm	Square	120 mm		2 leads	Wire Leads	2 Wire Leads		IP68	Dust Tight Waterproof	48 VDC				Plastic	Plastic
Sanyo Denki America Inc. 9WP1248H1D011	99 CFM	38 mm	2600 RPM	5.28 W	Locked Rotor Sensor	0.794 lb	-4 °F	158 °F	39 dB	Ball	Tubeaxial	120 mm	Square	120 mm	CSA TUV UL	3	Wire Leads	3 Wire Leads	0.283 in H2O	IP68	Dust Tight Waterproof	48 VDC	110 mA	55.2 VDC	40.8 VDC	Plastic	Plastic	40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

9WP1248M1011.pdf

Rotor Balancing

Numbering System Splash Proof Fan

Handling Instructions for Fan Motors
