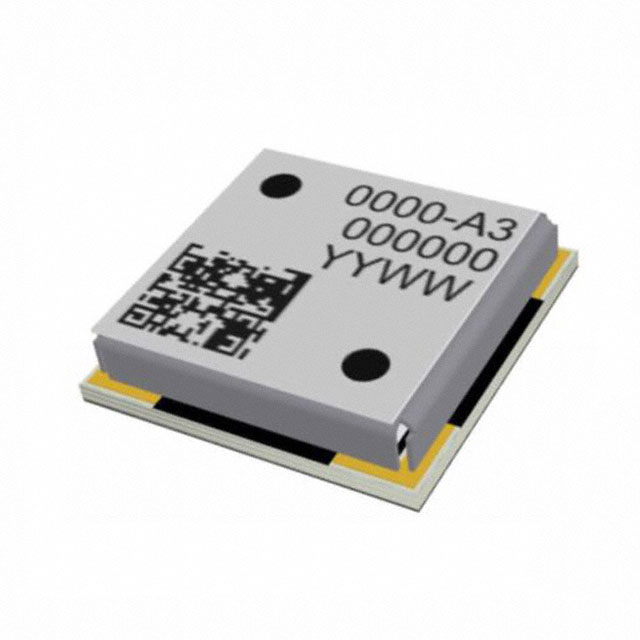

M10578-A2
ActiveAntenova
GPS RECEIVER 1575.42MHZ 4.3V 16-PIN USMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M10578-A2
ActiveAntenova
GPS RECEIVER 1575.42MHZ 4.3V 16-PIN USMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M10578-A2 | M10578 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Current - Receiving | 24 mA | 24 - 28 mA |
| Data Interface | UART | UART |
| For Use With/Related Products | - | M10578-A2, M10578-A3 |
| Frequency | 1.575 GHz | 1.575 - 1575.42 MHz |
| Modulation or Protocol | GPS | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Module | Module |
| Sensitivity | -165 dBm | -165 dBm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | Module | Module |
| Type | - | GNSS (GPS) |
| Voltage - Supply | 3.3 V | 3.3 V |
M10578 Series
M10578-A2- GPS/GNSS RF MODULE EV
| Part | Type | For Use With/Related Products | Supplied Contents | Frequency | Modulation or Protocol | Current - Receiving | Sensitivity | Applications | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Mounting Type | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Antenova M10578-A2-U1 | GNSS (GPS) | M10578-A2 | Board(s) | 1575.42 MHz | |||||||||||
Antenova M10578-A3 | 1.575 GHz | BeiDou, Galileo, GLONASS, GNSS, GPS | 28 mA | -165 dBm | General Purpose | UART | 85 °C | -40 °C | Module | Module | Surface Mount | 3.3 V | |||
Antenova M10578-A3-U1 | GNSS (GPS) | M10578-A3 | Board(s) | 1575.42 MHz | |||||||||||
Antenova M10578-A2 | 1.575 GHz | GPS | 24 mA | -165 dBm | General Purpose | UART | 85 °C | -40 °C | Module | Module | Surface Mount | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.33 | |
| 10 | $ 10.26 | |||
| 25 | $ 10.00 | |||
| Digi-Reel® | 1 | $ 11.33 | ||
| 10 | $ 10.26 | |||
| 25 | $ 10.00 | |||
| Tape & Reel (TR) | 1000 | $ 10.00 | ||
Description
General part information
M10578 Series
RADIONOVA® RF Receiver GPS 1.575GHz -165dBm Module
