M10578-A2-U1

Active

Antenova

M10578-A2- GPS/GNSS RF MODULE EV

Search across all available documentation for this part.

Active

Antenova

M10578-A2- GPS/GNSS RF MODULE EV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.75

General part information

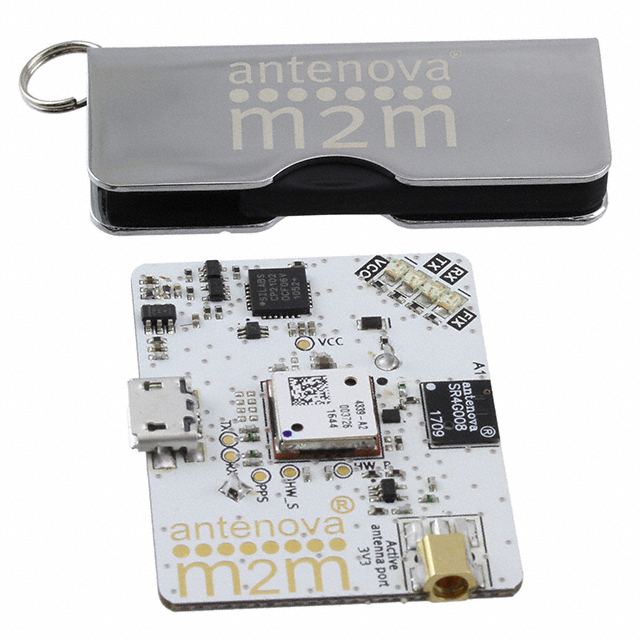

RADIONOVA® M10578-A2 GNSS (GPS) 1575.42MHz Evaluation Board

Technical documentation and resources

Specification	M10578-A2-U1	M10578 Series

Applications	-	General Purpose
Current - Receiving	-	24 - 28 mA
Data Interface	-	UART
For Use With/Related Products	M10578-A2	M10578-A2, M10578-A3
Frequency	1575.42 MHz	1.575 - 1575.42 MHz
Modulation or Protocol	-	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Sensitivity	-	-165 dBm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	Module
Type	GNSS (GPS)	GNSS (GPS)
Voltage - Supply	-	3.3 V

Part	Type	For Use With/Related Products	Supplied Contents	Frequency	Modulation or Protocol	Current - Receiving	Sensitivity	Applications	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Mounting Type	Voltage - Supply
Antenova M10578-A2-U1	GNSS (GPS)	M10578-A2	Board(s)	1575.42 MHz
Antenova M10578-A3				1.575 GHz	BeiDou, Galileo, GLONASS, GNSS, GPS	28 mA	-165 dBm	General Purpose	UART	85 °C	-40 °C	Module	Module	Surface Mount	3.3 V
Antenova M10578-A3-U1	GNSS (GPS)	M10578-A3	Board(s)	1575.42 MHz
Antenova M10578-A2				1.575 GHz	GPS	24 mA	-165 dBm	General Purpose	UART	85 °C	-40 °C	Module	Module	Surface Mount	3.3 V
