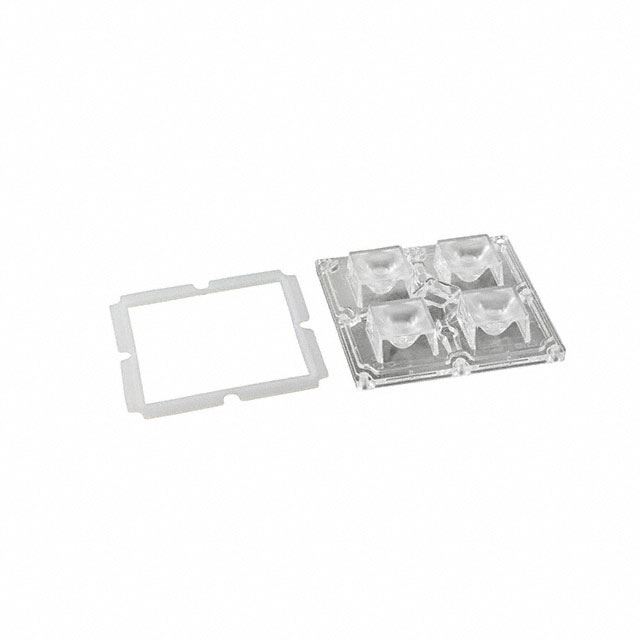

CS15767_HB-2X2MX-8-M
ActiveLEDiL
ASSEMBLY SQUARE 4 POS 90X90MM (D) 16,38M/ FOAM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS15767_HB-2X2MX-8-M |
|---|---|
| Color | Clear |
| Lens Size [x] | 90 mm |
| Lens Size [y] | 90 mm |
| Lens Style | Square with Multiple Top |
| Material | Acrylic |
| Mounting Type | Screw |
| Number of LEDs | 4 |
| Optical Pattern | Wide |
| Type | Lens |
| Viewing Angle [Max] | 31 ° |
| Viewing Angle [Min] | 17 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CS15767 Series
Lens Clear 17° ~ 31° Wide Screw
