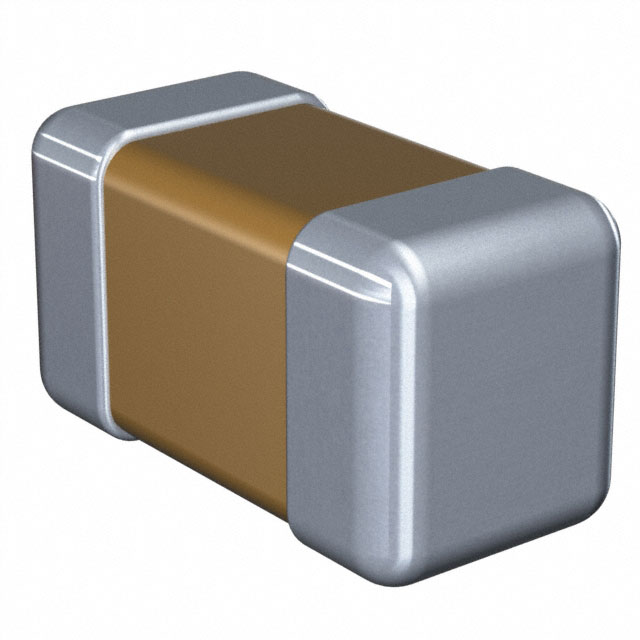

C0603S223J3RACAUTO
ActiveKEMET
FAILOPENSMD.022UF 25.0V
Deep-Dive with AI
Search across all available documentation for this part.
C0603S223J3RACAUTO
ActiveKEMET
FAILOPENSMD.022UF 25.0V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0603S223J3RACAUTO |
|---|---|
| Applications | Automotive |
| Capacitance | 0.022 µF |
| Features | Floating Electrode |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.034 in |
| Thickness (Max) [Max] | 0.87 mm |
| Tolerance | 5 % |
| Voltage - Rated | 25 VDC |
C0603S Series
| Part | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Thickness (Max) [Max] | Thickness (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Features | Applications | Capacitance | Mounting Type | Tolerance | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | AEC-Q200 | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | Automotive | 4700 pF | MLCC Surface Mount | 10 % | 25 VDC |
KEMET | AEC-Q200 | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | Automotive | 0.001 µF | MLCC Surface Mount | 10 % | 100 V |
KEMET | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | General Purpose | 2200 pF | MLCC Surface Mount | 5 % | 50 VDC | |
KEMET | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | General Purpose | 2200 pF | MLCC Surface Mount | 10 % | 50 VDC | |
KEMET | AEC-Q200 | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | Automotive | 0.022 µF | MLCC Surface Mount | 5 % | 25 VDC |
KEMET | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | General Purpose | 680 pF | MLCC Surface Mount | 10 % | 25 VDC | |
KEMET | AEC-Q200 | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | Automotive | 470 pF | MLCC Surface Mount | 10 % | 25 VDC |
KEMET | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | General Purpose | 15000 pF | MLCC Surface Mount | 10 % | 25 VDC | |
KEMET | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | General Purpose | 220 pF | MLCC Surface Mount | 10 % | 100 V | |
KEMET | 0.8 mm | 0.063 in | 1.6 mm | 0.031 in | 0603 (1608 Metric) | 0.034 in | 0.87 mm | -55 °C | 125 °C | X7R | Floating Electrode | General Purpose | 220 pF | MLCC Surface Mount | 10 % | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
Description
General part information
C0603S Series
0.022 µF ±5% 25V Ceramic Capacitor X7R 0603 (1608 Metric)
