Q-1Z01Z00010.5M

Active

Amphenol Custom Cable

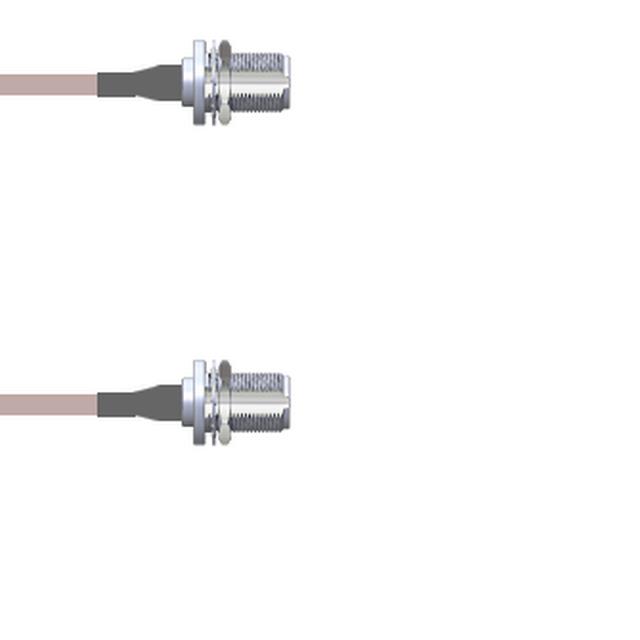

CBL ASSY NTYPE JACK-JACK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z01Z00010.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-JACK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z01Z00010.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1Z01Z0 Series

Part	1st Connector Mounting Feature	2nd Contact Gender	2nd Connector	1st Connector	Frequency - Max [Max]	Cable Type	Overall Impedance	1st Contact Gender	Length	Length	Length	2nd Connector Mounting Type	Style	2nd Connector Mounting Feature	Color	Features	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-1Z01Z0001108i	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	2.7 m	9 ft	108 in	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001003i	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	76.2 mm		3 in	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001036i	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	91.44 cm		36 in	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z00010.5M	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	50 cm		19.69 "	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001072i	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	1.8 m	6 ft	72 in	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001024i	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	609.6 mm		24 "	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001002M	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	2 m	6.6 ft	78.7 in	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001006i	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	152.4 mm		6 in	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001.75M	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female	750 mm		29.53 "	Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount
Amphenol Custom Cable Q-1Z01Z0001.25M	Bulkhead - Front Side Nut	Female	N-Type Jack	N-Type Jack	11 GHz	RG-178	50 Ohms	Female				Panel Mount	N-Type to N-Type	Bulkhead - Front Side Nut	Copper	Shielded	Panel Mount	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.95
		25	$ 84.31
		50	$ 82.66
		100	$ 81.02
		250	$ 79.38

Description

General part information

Q-1Z01Z0 Series

Cable Assembly Coaxial N-Type to N-Type RG-178 19.69" (500.00mm)
