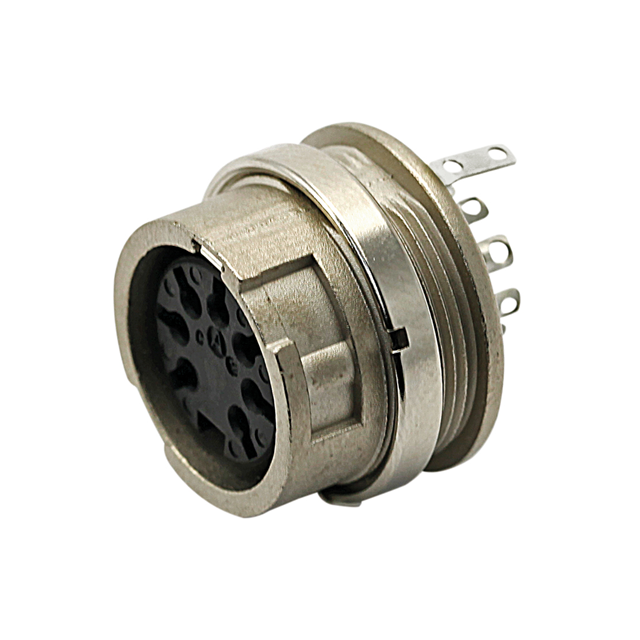

Specification	T 3627 100

Applications	Instrumentation, Medical, Testing Equipment & Measurement, Industrial, Marine
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating	3 A
Fastening Type	Bayonet Lock
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	12
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-12
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	60 V

T 3627 Series

Part	Color	Applications	Current Rating	Contact Finish - Mating	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Shell Material	Fastening Type	Shell Size - Insert	Termination	Shell Finish	Ingress Protection	Insert Material	Voltage Rating	Orientation	Primary Material	Mounting Feature	Connector Type	Shielding	Number of Positions
McGill Microwave Systems T 3627 100	Silver	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	3 A	Silver	Panel Mount	100 °C	-40 °C	UL94 V-0	Zinc Die Cast	Bayonet Lock	M16-12	Solder Cup	Nickel	IP40	Thermoplastic	60 V	Keyed	Metal	Bulkhead Front Side Nut	Female Sockets Receptacle	Unshielded	12
