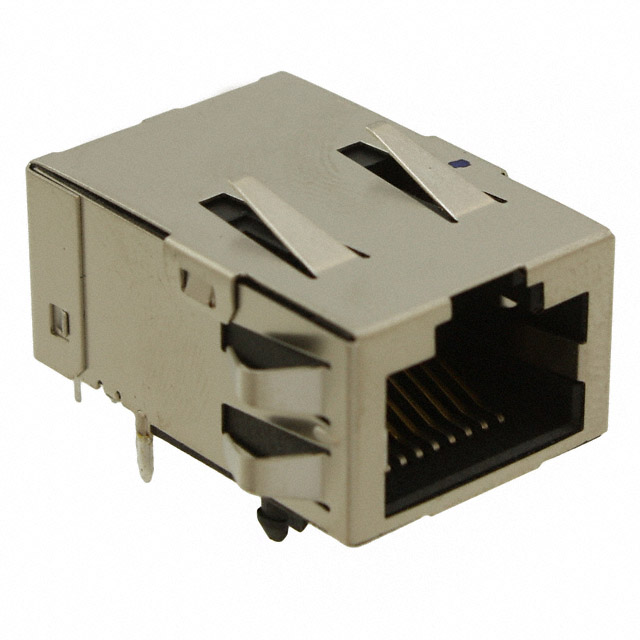

CONN JACK 1PORT PCB
SMJ001-S88N-DS-11
ObsoleteSullins Connector Solutions
CONN JACK 1PORT PCB
Description
General part information
SMJ001 Series
1 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
Technical Specifications
Parameters and characteristics for this part
| Specification | SMJ001-S88N-DS-11 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Features | Board Lock |
| Height Above Board | 0.417 in |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shield Material | Brass |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Up |
| Termination | Solder |
