853-99-026-20-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 26POS 0.05 TIN PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

853-99-026-20-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 26POS 0.05 TIN PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	853-99-026-20-001000

Connector Type	Receptacle
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

853-99 Series

Part	Contact Finish - Mating	Fastening Type	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Insulation Color	Termination	Number of Rows	Connector Type	Insulation Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 853-99-010-30-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	10	Tin-Lead	Circular	0.207 in	5.25 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Surface Mount	Beryllium Copper
Mill-Max Manufacturing Corp. 853-99-060-20-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	60	Tin-Lead	Circular	0.12 in	3.05 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Through Hole Right Angle	Beryllium Copper	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-020-30-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	20	Tin-Lead	Circular	0.207 in	5.25 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Surface Mount	Beryllium Copper
Mill-Max Manufacturing Corp. 853-99-010-10-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	10	Tin-Lead	Circular	0.158 "	4.01 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Through Hole	Beryllium Copper			0.102 in	2.6 mm
Mill-Max Manufacturing Corp. 853-99-040-10-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	40	Tin-Lead	Circular	0.158 "	4.01 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Through Hole	Beryllium Copper			0.102 in	2.6 mm
Mill-Max Manufacturing Corp. 853-99-026-20-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	26	Tin-Lead	Circular	0.12 in	3.05 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Through Hole Right Angle	Beryllium Copper	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-096-20-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	96	Tin-Lead	Circular	0.12 in	3.05 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Through Hole Right Angle	Beryllium Copper	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-072-30-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	72	Tin-Lead	Circular	0.207 in	5.25 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Surface Mount	Beryllium Copper
Mill-Max Manufacturing Corp. 853-99-024-10-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	24	Tin-Lead	Circular	0.158 "	4.01 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Through Hole	Beryllium Copper			0.102 in	2.6 mm
Mill-Max Manufacturing Corp. 853-99-100-30-001000	Tin-Lead	Push-Pull	3 A	0.05 in	1.27 mm	200 µin	5.08 µm	2.54 çm	100 çin	100	Tin-Lead	Circular	0.207 in	5.25 mm	Black	Solder	2	Receptacle	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Female Socket	Surface Mount	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 15.45

Description

General part information

853-99 Series

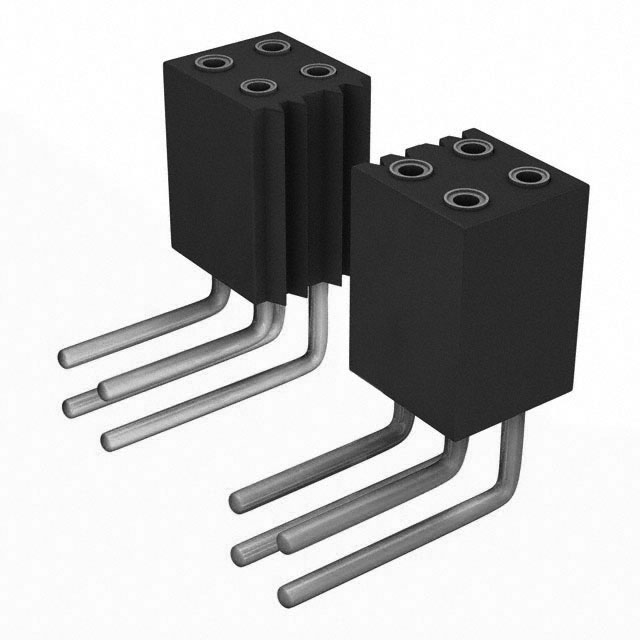

26 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Tin-Lead
