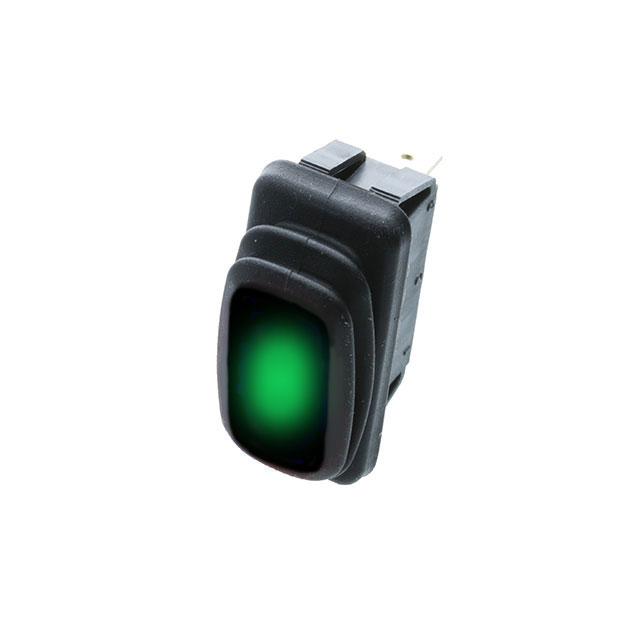

RE2-1A-DC-1-GL

Active

Switch Components

SWITCH ROCKER SPST 25A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 25A 14V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RE2-1A-DC-1-GL	RE2-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flat - Illuminated	Flat - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Green	Red, Green, Amber
Current Rating (Amps)	25 A	25 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	LED, Green	Red, LED, Green, Amber
Illumination Voltage (Nominal)	14 VDC	14 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	27.6 mm	27.6 mm
Panel Cutout Dimensions [y]	13.8 mm	13.8 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V	14 V

SWITCH ROCKER SPST 25A 14V

Part	Illumination Type, Color	Actuator Marking	Termination Style	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Function	Actuator Type	Color - Actuator/Cap	Mechanical Life	Illumination Voltage (Nominal)	Ingress Protection	Electrical Life
Switch Components RE2-1A-DC-1-RL	LED, Red	No Marking	Quick Connect - 0.250" (6.3mm)	25 A	Panel Mount, Snap-In	-25 °C	85 °C	14 V	SPST	13.8 mm	27.6 mm	On-Off	Flat - Illuminated	Red	10000 Steps	14 VDC	IP65 - Dust Tight, Water Resistant	6000 Cycles
Switch Components RE2-1A-DC-1-GL	Green, LED	No Marking	Quick Connect - 0.250" (6.3mm)	25 A	Panel Mount, Snap-In	-25 °C	85 °C	14 V	SPST	13.8 mm	27.6 mm	On-Off	Flat - Illuminated	Green	10000 Steps	14 VDC	IP65 - Dust Tight, Water Resistant	6000 Cycles
Switch Components RE2-1A-DC-1-AL	Amber, LED	No Marking	Quick Connect - 0.250" (6.3mm)	25 A	Panel Mount, Snap-In	-25 °C	85 °C	14 V	SPST	13.8 mm	27.6 mm	On-Off	Flat - Illuminated	Amber	10000 Steps	14 VDC	IP65 - Dust Tight, Water Resistant	6000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.09

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
