Specification	1-1969589-2

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Glow Wire Compliant
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Pitch	0.098 in

1969589 Series

Part	Note	Number of Positions	Features	Color	Number of Rows	Insulation Material	Mounting Type	Connector Type	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Contact Termination	Contact Type

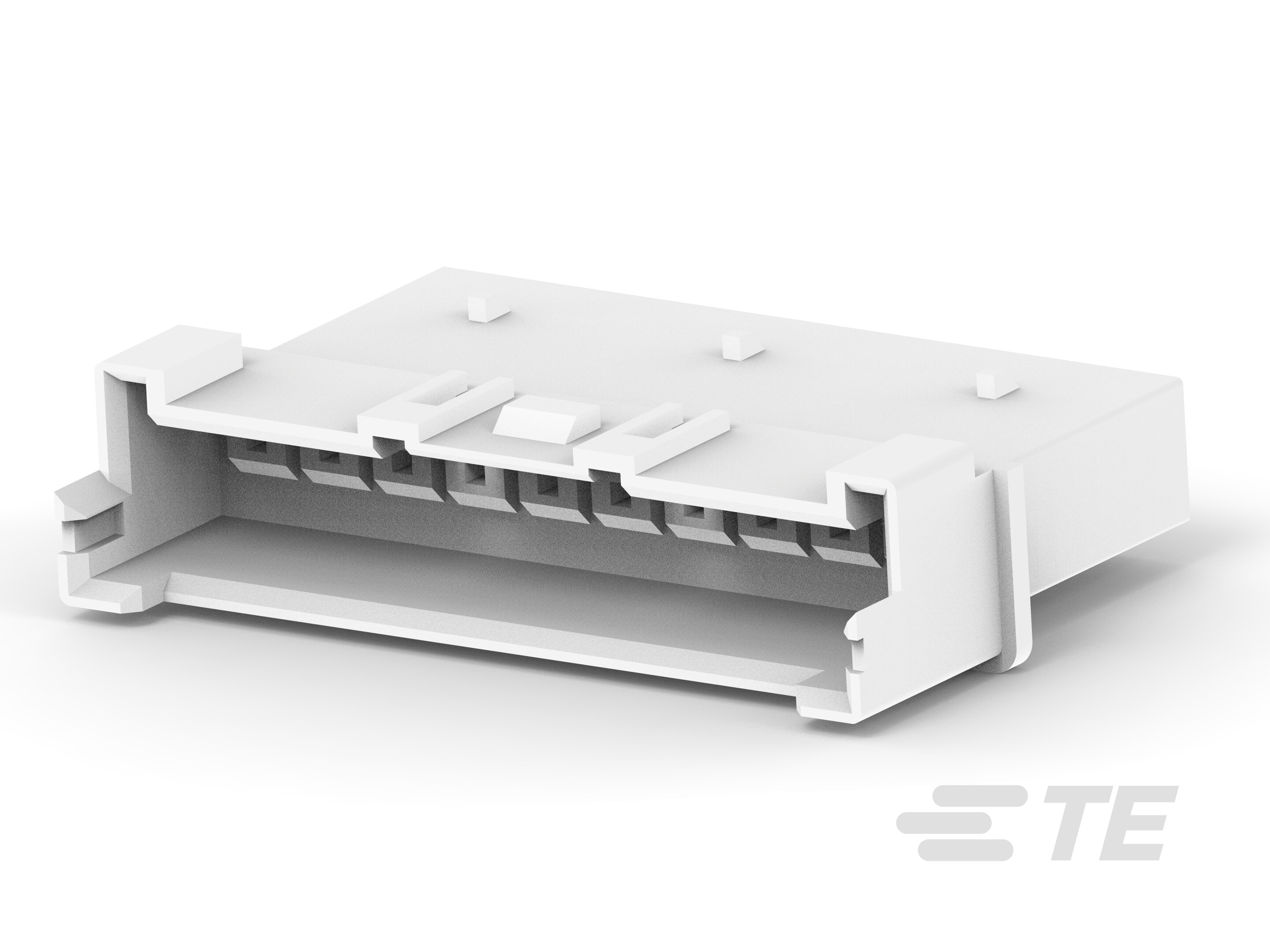

TE Connectivity AMP Connectors 1-1969589-0	Contacts Not Included	10	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1-1969589-4	Contacts Not Included	14	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1969589-2	Contacts Not Included	2	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1969589-4	Contacts Not Included	4	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1969589-6	Contacts Not Included	6	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1-1969589-2	Contacts Not Included	12	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1969589-8	Contacts Not Included	8	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1969589-3	Contacts Not Included	3	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1969589-7	Contacts Not Included	7	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
TE Connectivity AMP Connectors 1-1969589-3	Contacts Not Included	13	Glow Wire Compliant	Natural	1	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Receptacle	Latch Holder	105 °C	-25 °C	0.098 in	Crimp	Male Pin
