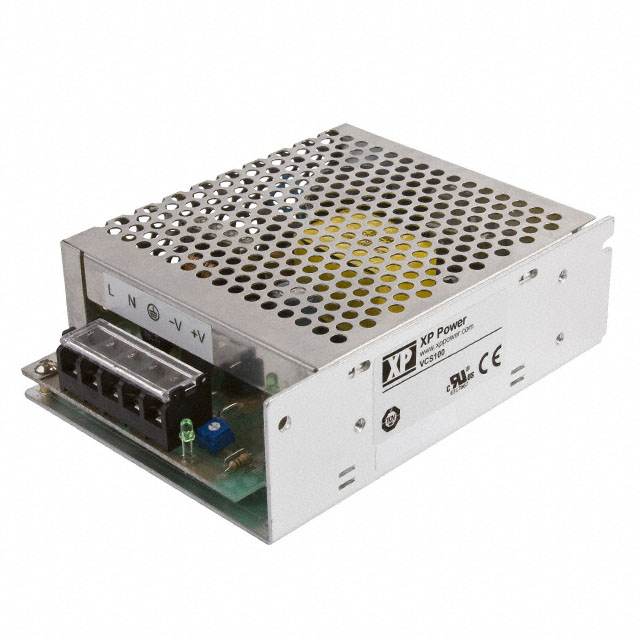

VCS100US05

Active

XP Power

AC/DC CONVERTER 5V 70W

Search across all available documentation for this part.

Active

XP Power

AC/DC CONVERTER 5V 70W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.70

General part information

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VCS100US05	VCS100 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Current - Output 1	14 A	6.67 - 14 A
Efficiency	78 %	78 - 86 %
Features	Universal Input, Adjustable Output, DC Input Capable	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	70 W	70 - 100 W
Size / Dimension [x]	6.26 in	6.26 in
Size / Dimension [x]	159 mm	159 mm
Size / Dimension [y]	98.2 mm	98.2 mm
Size / Dimension [y]	3.87 "	3.87 "
Size / Dimension [z]	42 mm	42 mm
Size / Dimension [z]	1.65 "	1.65 "
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 - 15 V

AC/DC CONVERTER 5V 70W

Part	Voltage - Output 1	Number of Outputs	Minimum Load Required	Features	Approval Agency	Power (Watts)	Mounting Type	Standard Number	Efficiency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Type	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
XP Power VCS100US05	5 V	1		Adjustable Output, DC Input Capable, Universal Input	CB	70 W	Chassis Mount	62368-1	78 %	ITE (Commercial)	-25 °C	70 °C	14 A	Enclosed	3000 V	6.26 in	42 mm	98.2 mm	1.65 "	159 mm	3.87 "
XP Power VCS100US15	15 V	1		Adjustable Output, DC Input Capable, Universal Input	CB	100 W	Chassis Mount	62368-1	86 %	ITE (Commercial)	-25 °C	70 °C	6.67 A	Enclosed	3000 V	6.26 in	42 mm	98.2 mm	1.65 "	159 mm	3.87 "
