Specification	165X15109X

Accessory Type	One Piece Backshell
Cable Exit Angle	180 °
Cable Type	Round
Compatible D-Sub Size	HD78pos, 50pos
Compatible Shell Size	D
Features	Mating Screws 4-40
Hardware	Assembly Hardware
Material	Metallized, Plastic
Number of Positions	50
Plating	Nickel
Primary Material	Plastic
Shielding	Shielded

165X151 Series

Part	Number of Positions	Cable Exit Angle	Plating	Shielding	Cable Type	Material	Compatible D-Sub Size	Accessory Type	Compatible Shell Size	Features	Hardware	Primary Material	Color
McGill Microwave Systems 165X15109X	50	180 °	Nickel	Shielded	Round	Metallized Plastic	50pos HD78pos	One Piece Backshell	D	Mating Screws 4-40	Assembly Hardware	Plastic

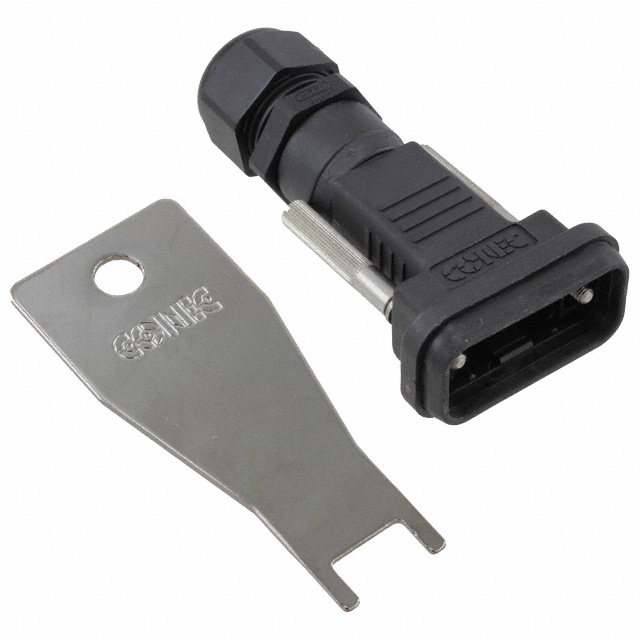

McGill Microwave Systems 165X15119X	9	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	9pos HD15pos	One Piece Backshell	E	Dust Tight/Waterproof (IP67) Mating Screws M3	Cable Clamp	Plastic	Black
McGill Microwave Systems 165X15149X	37 pos	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	37pos HD62pos	One Piece Backshell	C	Mating Screws M3		Plastic	Black
McGill Microwave Systems 165X15169X	9	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	9pos HD15pos	One Piece Backshell	E	Dust Tight/Waterproof (IP67) Mating Screws M3	Cable Clamp	Plastic	Black
McGill Microwave Systems 165X15199X	37 pos	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	37pos HD62pos	One Piece Backshell	C	Mating Screws M3		Plastic	Black
McGill Microwave Systems 165X15159X	50	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	50pos HD78pos	One Piece Backshell	D	Mating Screws M3		Plastic	Black
McGill Microwave Systems 165X15179X	15	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	15pos HD26pos	One Piece Backshell	A	Mating Screws M3		Plastic	Black
McGill Microwave Systems 165X15189X	25	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	25pos HD44pos	One Piece Backshell	B	Mating Screws M3		Plastic	Black
McGill Microwave Systems 165X15129X	15	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	15pos HD26pos	One Piece Backshell	A	Dust Tight/Waterproof (IP67) Mating Screws M3	Cable Clamp	Plastic	Black
McGill Microwave Systems 165X15139X	25	180 °		Unshielded	Round	Glass Filled Polybutylene Terephthalate (PBT)	25pos HD44pos	One Piece Backshell	B	Mating Screws M3		Plastic	Black
