1010092CHCO

Integrated Power Designs

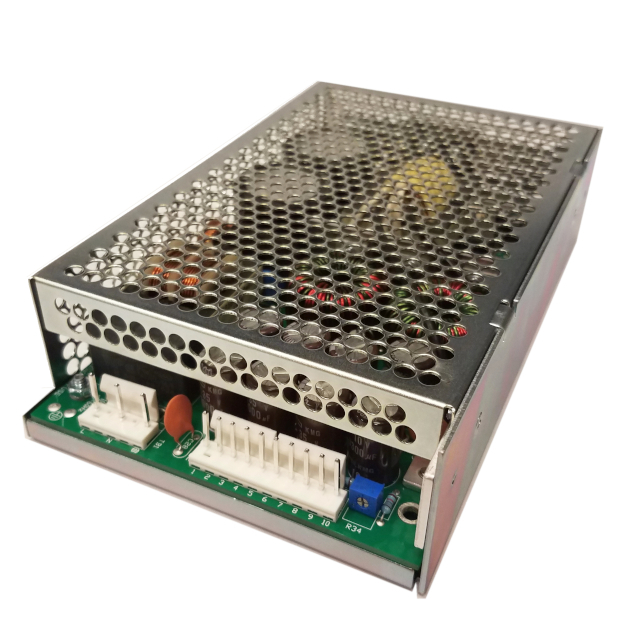

AC/DC CONVERTER 5V +/-15V 115W

Search across all available documentation for this part.

Integrated Power Designs

AC/DC CONVERTER 5V +/-15V 115W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1010092CHCO	1010092 Series

Applications	Industrial, ITE (Commercial)	Industrial, ITE (Commercial)
Approval Agency	CE, UKCA, TUV	CE, UKCA, TUV
Current - Output 1	12 A	12 A
Current - Output 2	4 A	4 A
Current - Output 3	2 A	2 A
Efficiency	76 %	76 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	3
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	115 W	115 W
Standard Number	62368-1	62368-1
Type	Enclosed	Chassis, Enclosed
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output 1	5 V	5 V
Voltage - Output 3	15 V	15 V
Voltage - Output 4	-15 V	-15 V

AC/DC CONVERTER 5V +/-15V 115W

Part	Type	Voltage - Input [Max]	Voltage - Input [Min]	Features	Current - Output 3	Efficiency	Number of Outputs	Voltage - Output 3	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Mounting Type	Current - Output 2	Approval Agency	Current - Output 1	Standard Number	Voltage - Output 4	Applications
Integrated Power Designs 1010092CH	Chassis	240 VAC	100 VAC	Adjustable Output, Universal Input	2 A	76 %	3	15 V	5 V	0 °C	50 °C	115 W	Chassis Mount	4 A	CE, TUV, UKCA	12 A	62368-1	-15 V	Industrial, ITE (Commercial)
Integrated Power Designs 1010092CHCO	Enclosed	240 VAC	100 VAC	Adjustable Output, Universal Input	2 A	76 %	3	15 V	5 V	0 °C	50 °C	115 W	Chassis Mount	4 A	CE, TUV, UKCA	12 A	62368-1	-15 V	Industrial, ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 5V 15V -15V 100 ~ 240 VAC Input
