PIC-S-109
Active3G Shielding Specialties LP

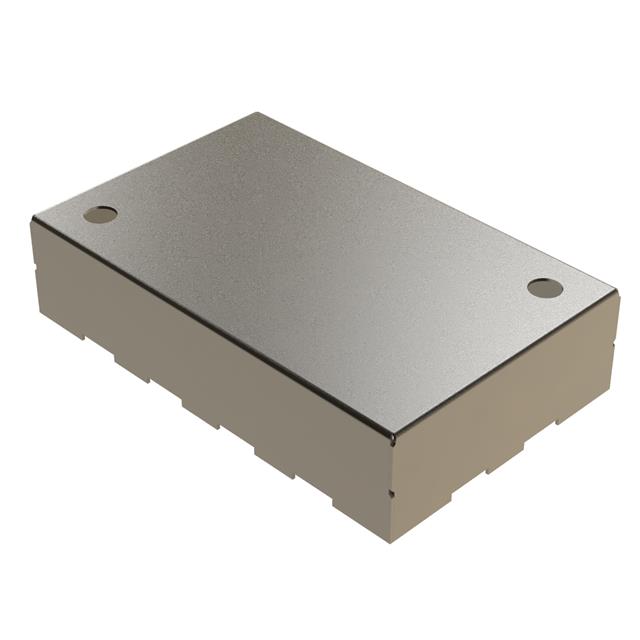

RF SHIELD, 1.156"X0.728"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PIC-S-109
Active3G Shielding Specialties LP
RF SHIELD, 1.156"X0.728"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIC-S-109 | PIC-S Series |
|---|---|---|
| Height - Overall | - | 3 mm |
| Height - Overall | - | 9.75 mm |
| Height - Overall [z] | 7 mm | 0.384 - 7 mm |
| Height - Overall [z] | 0.276 in | 0.1 - 0.276 in |
| Length - Overall | - | 25.4 - 26.21 mm |
| Length - Overall | - | 30.5 mm |
| Length - Overall [x] | 1.156 in | 0.5 - 1.747 in |
| Length - Overall [x] | 29.36 mm | 1.201 - 44.37 mm |
| Mounting Type | Surface Mount | Surface Mount, Solder, Snap Fit |
| Type | - | Frame, Cover |
| Ventilation | Non-Vented | Non-Vented, Vent Holes in Pattern |
| Width - Overall | - | 38.1 mm |
| Width - Overall | - | 26.21 mm |
| Width - Overall | - | 44.37 mm |
| Width - Overall | - | 1.747 in |
| Width - Overall [x] | 18.5 mm | 1.5 - 39.6 mm |
| Width - Overall [x] | 0.728 in | 0.538 - 1.559 in |
PIC-S Series
RF SHIELD, 1.559"X1.559"
| Part | Ventilation | Height - Overall [z] | Height - Overall [z] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Width - Overall [x] | Width - Overall [x] | Type | Length - Overall | Width - Overall [x] | Height - Overall | Length - Overall [x] | Width - Overall | Height - Overall [z] | Width - Overall [y] | Width - Overall [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3G Shielding Specialties LP PIC-S-108 | Non-Vented | 7 mm | 0.276 in | Surface Mount | 1.559 in | 39.6 mm | 1.559 in | 39.6 mm | |||||||||
3G Shielding Specialties LP PIC-S-202F | 3.61 mm | 0.142 " | Solder | 0.65 " | 16.51 mm | 0.65 in | 16.51 mm | Frame | |||||||||
3G Shielding Specialties LP PIC-S-105 | Vent Holes in Pattern | 6 mm | 0.236 in | Solder | 1 in | 1.5 " | 25.4 mm | 38.1 mm | |||||||||
3G Shielding Specialties LP PIC-S-210C | Vent Holes in Pattern | 0.118 in | Snap Fit | 1.201 in | Cover | 3 mm | 30.5 mm | ||||||||||
3G Shielding Specialties LP PIC-S-202C | Vent Holes in Pattern | 3.61 mm | 0.142 " | Snap Fit | 0.65 " | 16.51 mm | 0.65 in | 16.51 mm | Cover | ||||||||
3G Shielding Specialties LP PIC-S-204F | 6 mm | 0.236 in | Solder | 1.26 in | 32 mm | 1.26 in | 32 mm | Frame | |||||||||
3G Shielding Specialties LP PIC-S-110 | Non-Vented | 0.118 in | Surface Mount | 1.201 in | 3 mm | 30.5 mm | |||||||||||
3G Shielding Specialties LP PIC-S-205F | 6 mm | 0.236 in | Solder | 1 in | 1.5 " | Frame | 25.4 mm | 38.1 mm | |||||||||
3G Shielding Specialties LP PIC-S-103 | Vent Holes in Pattern | 5.08 mm | 0.2 in | Solder | 1.032 in | 1.032 in | 26.21 mm | 26.21 mm | |||||||||
3G Shielding Specialties LP PIC-S-101 | Vent Holes in Pattern | 2.54 mm | 0.1 in | Solder | 0.5 in | 12.7 mm | 0.538 " | 13.67 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 10 | $ 3.85 | |
| 30 | $ 2.62 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.25 | |||
| 200 | $ 0.87 | |||
| 600 | $ 0.65 | |||
| 1000 | $ 0.50 | |||
| 2600 | $ 0.39 | |||
| 5000 | $ 0.32 | |||
Description
General part information
PIC-S Series
RF Shield CAN 0.728" (18.50mm) X 1.156" (29.36mm) Non-Vented Surface Mount
